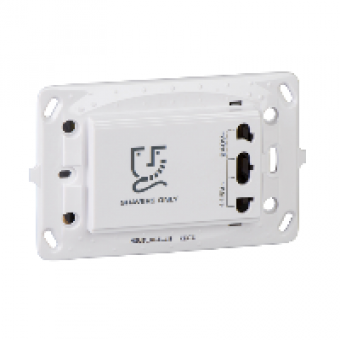

MGU5.064.18 - Unica - shaver socket - 3 m - white, Schneider Electric
- Product Code: MGU5.064.18
- Brand: Schneider Electric
- Availability: To be confirmed
- € 20.17 Ex Tax:
MAIN CHARACTERISTICS
range of product
UNICA
aesthetic name
UNICA STANDARD AESTHETIC
product or component type
SHAVER SOCKET
product compatibility
UNINTERRUPTIBLE POWER SUPPLY
device presentation
MECHANISM WITH FIXING FRAME
rated power in VA
20 VA
input voltage
240 V, 50 Hz
output voltage
115...240 V AC, 50/60 Hz
number of modules
3 MODULES
fixing mode
CLIP-IN
cover plate colour tint
WHITE
COMPLEMETARY CHARACTERISTICS
connections - terminals
SCREW TERMINALS
cable cross section
<= 4 MM FLEXIBLE
minimum load breaking capacity
100 OPERATIONS 1.25 IN AND 1.1 UN COS PHI 0.6
electrical durability
10000 CYCLES COS PHI 0.8
insulation resistance
> 5 MOHM 500 V
dielectric strength
> 2000 V
quantity per set
SET OF 1
standards
IEC 60884-1
ambient air temperature for operation
15...30 C
ambient air temperature for storage
0...35 C
embedding depth
40 MM
depth
52 MM
market segment
RESIDENTIAL
