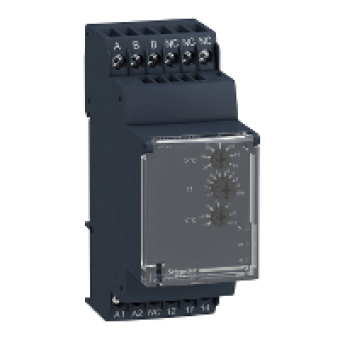

RM35ATW5MW - temperature control relay RM35-A - 24..240 V AC/DC - 2 NO, Schneider Electric
- Product Code: RM35ATW5MW
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO CONTROL
product or component type
MODULAR MSREMENT + CTRL RELAYS
relay type
TEMPERATURE CONTROL RELAYS
product specific application
F ELVTR M C ROOMS + 3-PH SPLY
relay name
RM35AT
relay monitored parameters
OVERTEMPERATURE 34...46DC
time delay range
0.1...10 S ADJUSTABLE 0...10 OF THE FULL SCALE VALUE
switching capacity in VA
1250 VA
minimum switching current
10 MA AT 5 V DC
power consumption in VA
<= 3.5 VA AC
utilisation category
AC-12 CONFORMING TO IEC 60947-5-1
COMPLEMETARY CHARACTERISTICS
reset time
8 S
maximum switching voltage
250 V ACDC
[Us] rated supply voltage
24..240 V ACDC
[Us] rated supply voltage
24...240 V ACDC
supply voltage limits
20.4..264 V AC
power consumption in W
<= 0.6 W DC
resistance across terminals
600 KOHM 3-PHASE
width
35 MM
output contacts
2 NO
contacts material
CADMIUM FREE
nominal output current
5 A
delay at power up
0.2 S
measurement accuracy
+- 2 DC
response time
<= 3.5 MS + TT IN CASE OF TEMPERATURE FAULT
temperature probe type
PT 100 - 3-WIRE
installed device
PT 100 PROBE CABLE LENGTH <= 10 M
marking
CE 73 23 EEC
overvoltage category
III CONFORMING TO IEC 60664-1
insulation resistance
> 500 MOHM AT 500 V DC BETWEEN SUPPLY AND RELAY OUTPUT CONFORMING TO IEC 60255-5
[Ui] rated insulation voltage
400 V CONFORMING TO IEC 60664-1
operating voltage tolerance
- 10 + 10 UN DC
supply frequency
50 60 HZ + - 10 PT
operating position
ANY POSITION WITHOUT DERATING
connections - terminals
screw terminals 1 x 0.5...1 x 4 mm² - AWG 20...AWG 11, solid cable without cable end
tightening torque
0.6...1 N.M CONFORMING TO IEC 60947-1
housing material
SELF-EXTINGUISHING PLASTIC
local signalling
1 LED GREEN FOR POWER ON
mounting support
35 MM SYMMETRICAL DIN RAIL CONFORMING TO ENIEC 60715
electrical durability
100000 CYCLES
mechanical durability
30000000 CYCLES
operating rate
<= 360 OPERATIONSHOUR UNDER FULL LOAD
compatibility code
RM3
