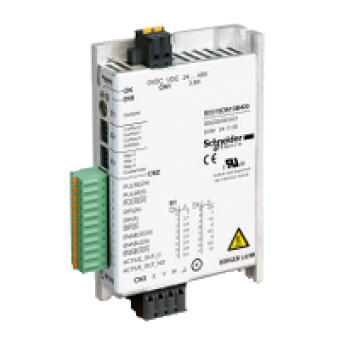

SD315DN10B400 - motion control stepper motor drive - SD315 - pulse direction without oscillator, Schneider Electric
- Product Code: SD315DN10B400
- Brand: Schneider Electric
- Availability: To be confirmed
- € 245.12 Ex Tax:
MAIN CHARACTERISTICS
range of product
LEXIUM SD3
product or component type
MOTION STEPPER DRIVE
device short name
SD315
supply voltage limits
19...60 V
COMPLEMETARY CHARACTERISTICS
format of the drive
BLOCK
network number of phases
SINGLE PHASE
[Us] rated supply voltage
24..48 V - 15..10
supply voltage type
DC
communication interface
INTEGRATED PULSEDIRECTION
motor phase current
<= 10 A
current consumption
<= 7.5 MA
power losses
<= 7 W
associated fuse rating
10 A
overvoltage category
III
leakage current
< 30 MA
voltage state 0 guaranteed
<= 5 V 24 V OPTOCOUPLER INPUT SIGNALS
voltage state 1 guaranteed
15...30 V 24 V OPTOCOUPLER INPUT SIGNALS
input current
<= 25 MA 5 V OPTOCOUPLER INPUT SIGNALS
input frequency
<= 200 KHZ 24 V OPTOCOUPLER INPUT SIGNALS
maximum switching voltage
30 V DC READINESS SIGNAL OUTPUT
maximum switching current
200 MA READINESS SIGNAL OUTPUT
voltage drop
<= 1 V 50 MA LOAD READINESS SIGNAL OUTPUT
physical interface
RS422 - PULSEDIRECTION INTERFACE WITHOUT OSCILLATOR
residual ripple
< 5 24 V CONTROL VOLTAGE
local signalling
1 LED - ERR
type of cooling
NATURAL CONVECTION
height
117 MM
width
74.5 MM
depth
23.5 MM
shock resistance
15 GN FOR 11 MS CONFORMING TO ENIEC 60068-2-27
product weight
0.25 KG
supply voltage description
SINGLE PHASE 24 V
network number of phases
1
