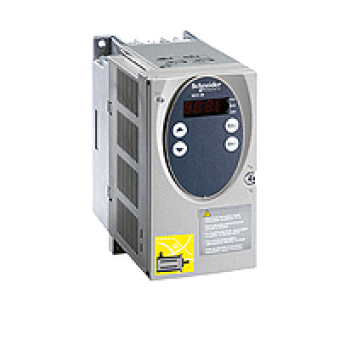

SD328AU25S2 - motion control stepper motor drive - SD328 - <= 2.5 A, Schneider Electric
- Product Code: SD328AU25S2
- Brand: Schneider Electric
- Availability: To be confirmed
- € 631.71 Ex Tax:
MAIN CHARACTERISTICS
range of product
LEXIUM SD3
product or component type
MOTION STEPPER DRIVE
device short name
SD328
supply voltage limits
100...120 V
bus type
FIELDBUS
COMPLEMETARY CHARACTERISTICS
format of the drive
BLOCK
network number of phases
SINGLE PHASE
[Us] rated supply voltage
100..120 V - 15..10
supply voltage type
AC DC
network frequency limits
50..60 HZ - 15..10
communication interface
INTEGRATED CANOPEN
motor phase current
<= 2.5 A
current consumption
3 A AT 230 V MAIN SUPPLY
nominal power
180 W AT 115 V
short-circuit current
0.5 KA
power losses
<= 26 W
associated fuse rating
6 A AT 115 V
overvoltage category
III
inrush current
< 60 A
leakage current
< 30 MA CONFORMING TO IEC 60990-3
voltage state 0 guaranteed
-3..5 V 24 V INPUT SIGNALS
voltage state 1 guaranteed
15..30 V 24 V INPUT SIGNALS
input current
<= 10 MA 24 V INPUT SIGNALS
input frequency
<= 200 KHZ SIGNAL INPUT ENC A ENC B ENC I PULSEDIRECTION
output frequency
< 400 KHZ PULSEDIRECTION INTERFACE AB
maximum switching current
<= 50 MA 24 V OUTPUT SIGNALS
voltage drop
1 V 50 MA LOAD 24 V OUTPUT SIGNALS
physical interface
2-wire RS 485 Modbus :
output voltage
<= 30 V 24 V OUTPUT SIGNALS
input voltage
24 V -15 +20 24 V CONTROL VOLTAGE
residual ripple
< 5 24 V CONTROL VOLTAGE
resistance
5 KOHM PULSEDIRECTION INTERFACE
analogue input type
VOLTAGE - 10...10 V RESOLUTION 14 BITS DURATION 0.25 MS
electrical connection
CONNECTOR RJ45 FOR CANOPEN INTERFACE
mode of transmission
RTU MODBUS
method of access
SLAVE CANOPEN
transmission rate
125 KBPS 250 KBPS 500 KBPS 1 MBPS CANOPEN
number of addresses
1..127 CANOPEN
installed device
127 STEPPER MOTOR DRIVES FOR CANOPEN
data format
8 BITS 1 STOP EVEN PARITY FOR MODBUS
communication service
1 PDO CONFIGURABLE FOR CANOPEN
local signalling
1 LED - ERR FOR CANOPEN
safety function
SAFE TORQUE OFF SAFETY FUNCTION FOR MACHINE CONFORMING TO IECEN 61800-5-2
type of cooling
NATURAL CONVECTION
maximum mechanical speed
3000 RPM
height
145 MM
width
72 MM
depth
140 MM
shock resistance
15 GN FOR 11 MS CONFORMING TO ENIEC 60068-2-27
product weight
1.1 KG
supply voltage description
SINGLE PHASE 115 V
network number of phases
1
compatibility code
SD328
The Schneider Electric SD328AU25S2 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
