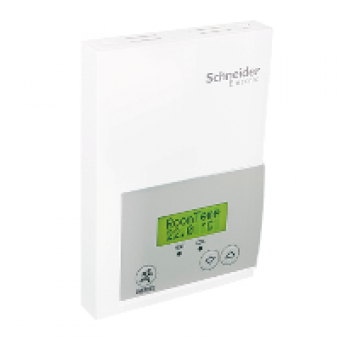

SE7200F5045W-VWA - EBE - Zone controller - Zigbee - door & window switch compatible - analog, Schneider Electric
- Product Code: SE7200F5045
- Brand: Schneider Electric
- Availability: To be confirmed
- € 151.27 Ex Tax:
MAIN CHARACTERISTICS
range
ECOSTRUXURE BUILDING EXPERT
product name
SE7000 SERIES
device short name
SE7200
product or component type
ZONE CONTROLLER
device application
ZONE THERMOSTAT
PIR cover
WITHOUT COVER
sensor type
10 KOHM T2 NTC THERMISTOR WITH MEASUREMENT ACCURACY + - 0.2 F
market segment
RESIDENTIAL
COMPLEMETARY CHARACTERISTICS
range compatibility
ECOSTRUXURE BUILDING EXPERT SENSOR
[Us] rated supply voltage
10...30 V AC 5060 HZ
rated operational power in VA
2 VA
electrical insulation class
CLASS II
network frequency
50 HZ
communication port protocol
ZIGBEE PROTOCOL
information displayed
TEMPERATURE - 40...122 F
Control accuracy
FOR TEMPERATURE + - 0.9 F AT 70 F TYPICALLY CALIBRATED
number of inputs
2 UNIVERSAL INPUT
input voltage
010 V DC
number of outputs
2 UNIVERSAL OUTPUT
output type
ANALOG
maximum number of control steps
3
Output rating
0...10 V DC <= 5 MA INTO >= 2 KOHM RESISTANCE
temperature setting range
40...90 F HEATING
proportional band
FOR HEATING ADJUSTABLE P REGULATOR BY 3.2 F FACTORY SETTTING
AWG gauge
AWG 22..AWG 18
connections - terminals
SCREW TERMINAL
width
3.42 IN
depth
1.18 IN
height
4.92 IN
product weight
0.75 LBUS
