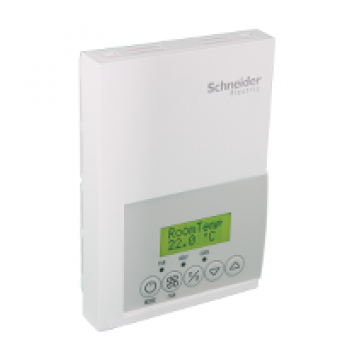

SE7355C5045B - EBE - FCU controller - BACnet - lodging - RH sensor- floating, Schneider Electric
- Product Code: SE7355C5045B
- Brand: Schneider Electric
- Availability: To be confirmed
- € 365.47 Ex Tax:
MAIN CHARACTERISTICS
range
ECOSTRUXURE BUILDING EXPERT
product name
SE7000 SERIES
device short name
SE7305
product or component type
ROOM CONTROLLER
device application
LOW VOLTAGE FAN COIL
PIR cover
WITHOUT COVER
sensor type
SINGLE POINT CALIBRATED BULK POLYMER RH SENSOR WITH MEASUREMENT ACCURACY +- 5
market segment
LODGING
COMPLEMETARY CHARACTERISTICS
range compatibility
ECOSTRUXURE BUILDING EXPERT COMMUNICATION CARD
[Us] rated supply voltage
10...30 V AC 5060 HZ
rated operational power in VA
2 VA
electrical insulation class
CLASS II
network frequency
50 HZ
communication port protocol
BACNET MS TP PROTOCOL
function available
HUMIDITY CONTROL
information displayed
TEMPERATURE - 40...122 F
Control accuracy
FOR HUMIDITY +- 5 AT 20...80 RH NON-CONDENSING
number of inputs
1 DRY CONTACT INPUT
number of outputs
2 UNIVERSAL OUTPUT
output type
TRIAC
Output rating
30 V AC 1 A MAXIMUM
temperature setting range
40...90 F HEATING
AWG gauge
AWG 22..AWG 18
connections - terminals
SCREW TERMINAL
width
3.42 IN
depth
1.18 IN
height
4.92 IN
product weight
0.75 LBUS
