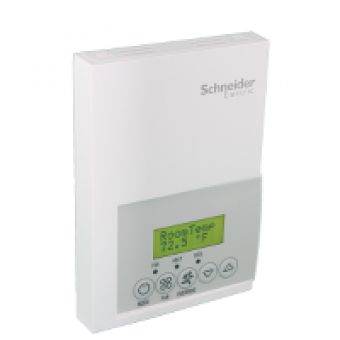

SER7350A5045 - EBE - FCU terminal equipment controller - Network Ready - commercial - RH sensor, Schneider Electric
- Product Code: SER7350A5045
- Brand: Schneider Electric
- Availability: To be confirmed
- € 89.32 Ex Tax:
MAIN CHARACTERISTICS
range
ECOSTRUXURE BUILDING EXPERT
product name
SE7000 SERIES
device short name
SER7300
product or component type
ROOM CONTROLLER
device application
LINE VOLTAGE FAN COIL
PIR cover
WITHOUT COVER
sensor type
SINGLE POINT CALIBRATED BULK POLYMER RH SENSOR WITH MEASUREMENT ACCURACY +- 5
market segment
SMALL COMMERCIAL
COMPLEMETARY CHARACTERISTICS
range compatibility
ECOSTRUXURE BUILDING EXPERT COMMUNICATION CARD
[Us] rated supply voltage
10...30 V AC
network frequency
50 HZ
communication port protocol
WITHOUT PROTOCOL
function available
HUMIDITY CONTROL
information displayed
TEMPERATURE - 40...122 F
Control accuracy
FOR HUMIDITY +- 5 AT 20...80 RH NON-CONDENSING
number of inputs
2 DRY CONTACT INPUT
number of outputs
1 RELAY OUTPUT
Output rating
FOR RELAY POWER SUPPLY 7 V DC
temperature setting range
40...90 F HEATING
proportional band
FOR HEATING ADJUSTABLE P REGULATOR BY 3.2 F BY DEFAULT
AWG gauge
AWG 22..AWG 14
connections - terminals
SCREW TERMINAL
width
3.42 IN
depth
1.18 IN
height
4.92 IN
product weight
0.75 LBUS
