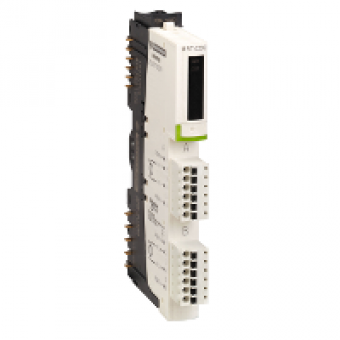

STBART0200K - standard analog input kit STB - 2 I - 15 bits + sign, Schneider Electric
- Product Code: STBART0200K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 222.96 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON STB DIST I O SOLUTION
product or component type
STANDARD ANALOG INPUT KIT
kit composition
STBART0200 MODULE
analogue input type
VOLTAGE +- 80 MV
analogue input number
2
analogue input resolution
15 BITS + SIGN
type of filter
SINGLE LOW PASS INPUT FILTER 25 HZ
COMPLEMETARY CHARACTERISTICS
absolute maximum input
+- 7.5 V DC
cold swapping
YES
hot swapping fallback
YES FOR STANDARD NIMS
fallback status
STATE 0 BASIC NIMS
data format
EN 61131-2
input impedance
10 MOHM +- 80 MV
supply current for sensors
100 MA PER INPUT CHANNELS
protection type
SHORT-CIRCUIT PROTECTION
absolute accuracy error
+- 0.1 OF FULL SCALE 25 C INTERNAL
insulation between channels and logic bus
1500 V FOR 1 MINUTE
addressing requirement
1 WORD F COLD-JUNCTION CMPSTN
product compatibility
MOUNTING BASE STBXBA1000
[Us] rated supply voltage
24 V DC
supply
POWER DISTRIBUTION MODULE
current consumption
30 MA 5 V DC LOGIC BUS
measurement resolution
0.01 MV VOLTAGE
conversion time
150 MS VOLTAGE 60 HZ
maximum wiring resistance
20 OHM CU 10 IECUSJIS 2 OR 3 WIRES
measurement accuracy
+- 1 DC NI 100 25 DC EXTERNAL
marking
CE
overvoltage category
II
status LED
1 LED GREEN MODULE STATUS RDY
