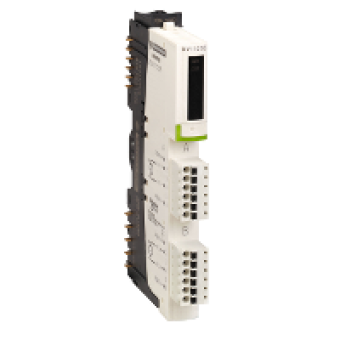

STBAVI1255K - basic analog input kit STB - 0..10 V - 2 I - 10 bits, Schneider Electric
- Product Code: STBAVI1255K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 170.15 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON STB DIST I O SOLUTION
product or component type
BASIC ANALOG INPUT KIT
kit composition
STBAVI1255 MODULE
analogue input type
VOLTAGE 0..10 V
analogue input number
2
analogue input resolution
10 BITS
type of filter
SINGLE LOW PASS INPUT FILTER 25 HZ
COMPLEMETARY CHARACTERISTICS
absolute maximum input
50 V DC
response time
5 MS
cold swapping
YES
hot swapping fallback
NO FOR BASIC NIMS
data format
EN 61131-2
update time
10 MS
integral linearity
+ -0.2 PTFS
differential linearity
MONOTONIC
input impedance
400 KOHM
supply current for sensors
100 MA PER INPUT CHANNELS
source impedance
<= 1 KOHM
absolute accuracy error
+- 0.5 OF FULL SCALE 25 DC
temperature drift
+-0.01 DC
insulation between channels and logic bus
1500 V FOR 1 MINUTE
insulation between channels and sensor bus
30 V
addressing requirement
2 INPUT WORDS
product compatibility
MOUNTING BASE STBXBA1000
[Us] rated supply voltage
24 V DC
supply
POWER DISTRIBUTION MODULE
current consumption
30 MA 5 V DC LOGIC BUS
marking
CE
overvoltage category
II
status LED
1 LED GREEN MODULE STATUS RDY
product weight
0.116 KG
