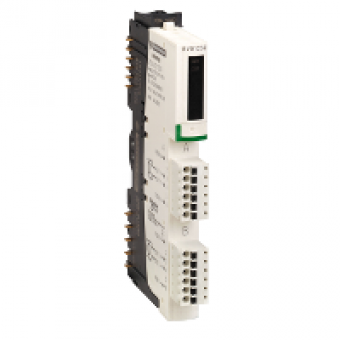

STBAVO1250K - standard analog output kit STB - +/- 10 V - 2 O - 12 bits, Schneider Electric
- Product Code: STBAVO1250K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 224.08 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON STB DIST I O SOLUTION
product or component type
STANDARD ANALOG OUTPUT KIT
kit composition
STBAVI1270 MODULE
analogue output type
VOLTAGE +- 10 V
analogue output number
2
analogue output resolution
11 BITS + SIGN +- 10 V
COMPLEMETARY CHARACTERISTICS
analogue output current
0.005 A
response time
3 MS
cold swapping
YES
hot swapping
YES FOR STANDARD NIMS
fallback
STATE 0 BASIC NIMS
data format
EN 61131-2
update time
25 MS
protection type
SHORT-CIRCUIT PROTECTION
integral linearity
+ -0.1 PTFS
differential linearity
MONOTONIC
absolute accuracy error
+- 0.5 OF FULL SCALE 25 DC
temperature drift
+-0.01 DC
insulation between channels and logic bus
1500 V FOR 1 MINUTE
insulation between channels and actuator bus
30 V
addressing requirement
2 N-AJCT I P BY MOD+CH DGTCS
product compatibility
MOUNTING BASE STBXBA1000
[Us] rated supply voltage
24 V DC
supply
POWER DISTRIBUTION MODULE
current consumption
45 MA 5 V DC LOGIC BUS
marking
CE
overvoltage category
II
status LED
1 LED GREEN MODULE STATUS RDY
depth
70 MM
height
13.9 MM
width
128.3 MM
product weight
0.116 KG
