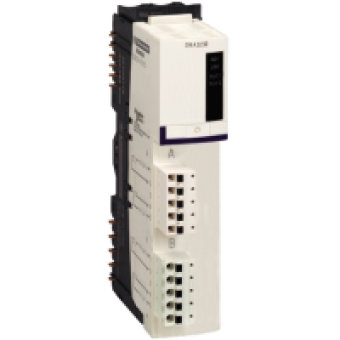

STBDRA3290K - standard digital output kit STB - 24 V DC - 6 O, Schneider Electric
- Product Code: STBDRA3290K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 94.76 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON STB DIST I O SOLUTION
product or component type
STANDARD DIGITAL OUTPUT KIT
kit composition
STBDRA3290 MODULE
discrete output number
2
discrete output type
RELAY
discrete output function
1 NO + 1 NC
discrete output voltage
115...230 V
discrete output voltage type
AC
COMPLEMETARY CHARACTERISTICS
discrete output current
7000 MA
discrete output logic
POSITIVE OR NEGATIVE
permissible voltage
20..250 V AC
output voltage
20...250 V AC
response time
10 MS OFF-TO-ON
switching capacity in VA
2100 VA RESISTIVE
mechanical durability
1000000 CYCLES
electrical durability
100000 CYCLES RESISTIVE
cold swapping
YES
hot swapping
YES FOR STANDARD NIMS
fallback
STATE 0 BASIC NIMS
protection type
COIL PROTECTION INTEGRATED FUSE ON PDM TIME LAG 10 A
insulation between channels
500 V FOR 1 MINUTE
insulation between channels and logic bus
1780 V FOR 1 MINUTE
insulation between logic bus and actuator bus
1500 V FOR 1 MINUTE
surge current
<= 20 A 10 MS CAPACITIVE
minimum load
50 MA
reset
MANUAL RESET COM FAULT
product compatibility
I O BASE STBXBA3000
[Us] rated supply voltage
24 V DC
supply
POWER DISTRIBUTION MODULE
current consumption
55 MA 5 V DC LOGIC BUS
marking
CE
overvoltage category
II
status LED
1 LED GREEN MODULE STATUS RDY
height
28.1 MM
depth
70 MM
width
128.3 MM
product weight
0.13 KG
