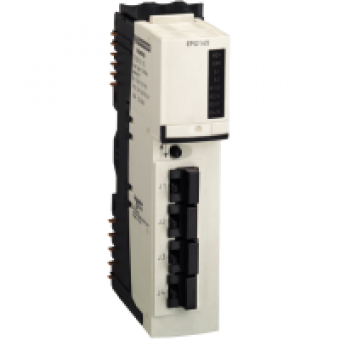

STBEPI2145K - parallel interface kit STB - 12 I CH - 8 O CH, Schneider Electric
- Product Code: STBEPI2145K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 156.90 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON STB DIST I O SOLUTION
product or component type
PARALLEL INTERFACE KIT
product specific application
TESYS QUICKFIT
COMPLEMETARY CHARACTERISTICS
kit composition
STBEPI2145 MODULE
number of input channels
12
input voltage
24 V
input voltage type
DC
input voltage limits
15..30 V AT STATE 1
current state 0 guaranteed
<= 0.5 MA
current state 1 guaranteed
>= 2 MA
number of output channels
8
output voltage
24 V
output voltage type
DC
protection type
POWER PROTECTION INTEGRATED FUSE ON PDM TIME LAG 10 A
cold swapping
YES
hot swapping
YES FOR STANDARD NIMS
fallback
STATE 0 BASIC NIMS
electrical connection
4 RJ45 CONNECTORS
[Us] rated supply voltage
24 V DC
supply
POWER DISTRIBUTION MODULE
product compatibility
MOUNTING BASE STBXBA3000
current consumption
<= 100 MA 24 V DC SENSOR BUS
marking
CE
overvoltage category
II
status LED
1 LED GREEN MODULE STATUS RDY
depth
170 MM
height
28.1 MM
width
128.3 MM
product weight
0.165 KG
The Schneider Electric STBEPI2145K is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
