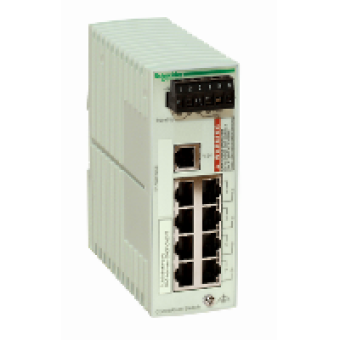

TCSESB083F2CU0 - Ethernet TCP/IP basic managed switch - ConneXium - 6TX/2FX - multimode, Schneider Electric
- Product Code: TCSESB083F2CU0
- Brand: Schneider Electric
- Availability: To be confirmed
- € 541.10 Ex Tax:
MAIN CHARACTERISTICS
range of product
CONNEXIUM
product or component type
ETHERNET TCP IP MANAGED SWITCH
concept
TRANSPARENT READY
communication port protocol
ETHERNET TCP IP
port Ethernet
100BASE-FX - 2 PORTS FIBER OPTIC
maximum number of switches in cascade
UNLIMITED
COMPLEMETARY CHARACTERISTICS
integrated connection type
DUPLEX SC FIBER OPTIC
transmission support medium
TWISTED SHIELDED PAIRS CABLE CAT 5E FOR FIBER OPTIC
max cable distance between devices
100 M COPPER CABLE
optic fiber length
62.2125 M
attenuation
11 DB 62.2125 M
Ethernet service
CONFIGURATION VIA WEB SERVER
maximum number of switches in a ring
50
redundancy
REDUNDANT POWER SUPPLIES
supply voltage limits
9.6..32 V DC SELV
power consumption in W
8 W
electrical connection
REMOVABLE CONNECTOR 6 WAYS POWER SUPPLY
mounting support
35 MM SYMMETRICAL DIN RAIL
marking
CE
local signalling
2 LEDS P1 P2 POWER SUPPLIES
alarm output
1 VOLTFREE CONTACT <= 1 A
alarm function
POWER SUPPLY FAULT
Ethernet cabling system
TF SWITCHES
width
74 MM
height
131 MM
depth
111 MM
product weight
0.41 KG
