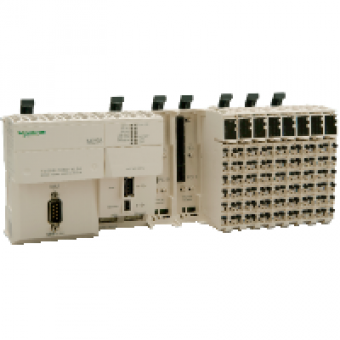

• TM258LF66DT4L - compact base M258 - 66 + 4 I/O - 24 V DC, Schneider Electric

TM258LF66DT4L - compact base M258 - 66 + 4 I/O - 24 V DC, Schneider Electric

  • € 1,589.46 Ex Tax:

MAIN CHARACTERISTICS
range of product
MODICON M258
product or component type
LOGIC CONTROLLER
product specific application
NOT APPLICABLE
discrete I/O number
66
analogue input number
4
discrete output number
24 FOR OUTPUT
COMPLEMETARY CHARACTERISTICS
discrete input number
10 FOR FAST INPUT
discrete input logic
SINK FOR FAST INPUT
discrete input voltage
24 V
discrete input voltage type
DC
analogue input type
CURRENT 0..20 MA
analogue input resolution
12 BITS
voltage state 1 guaranteed
>= 15 V FOR FAST INPUT
voltage state 0 guaranteed
<= 5 V FOR FAST INPUT
discrete input current
4 MA FOR FAST INPUT
input impedance
6 KOHM FOR FAST INPUT
configurable filtering time
0 MS FOR FAST INPUTREGULAR INPUT AND FAST OUTPUT
anti bounce filtering
2 S...4 MS CONFIGURABLE FAST INPUTREGULAR INPUT AND FAST OUTPUT
max cable distance between devices
30 M FOR FAST INPUT
isolation between channels and internal logic
500 VRMS AC
isolation between channels
NONE
discrete output logic
SOURCE
discrete output voltage
24 V DC
output voltage limits
19.2..28.8 V
discrete output current
4 MA FOR FAST OUTPUT
[Us] rated supply voltage
24 V DC FOR EMBEDDED EXPERT MODULES POWER
supply voltage limits
20.4...28.8 V
[In] rated current
0.04 A FOR EMBEDDED EXPERT MODULES POWER
peak current
<= 100 KA DURING <= 70 S MAIN SUPPLY
power consumption in W
<= 18.11 W
execution time per instruction
22 NS BOOLEAN
memory description
FLASH 128 MB
realtime clock
WITHOUT ANY USER CALIBRATION REALTIME CLOCK DRIFT < 30 SMONTH AT 25 C
data backed up
VARIABLES OF TYPE RETAIN AND RETAIN PERSISTENT CR2477M RENATA 1.5 YEARS AUTONOMY
integrated connection type
1 ISOLATED SERIAL LINK FEMALE RJ45 MODBUS MASTERSLAVE RTUASCII OR CHARACTER MODE ASCII RS232RS485 300...115200 BPS
transmission rate
125 KBITS FOR BUS LENGTH OF 500 M CANOPEN
counting input number
8 counting input(s) 200 kHz
local signalling
1 LED PER CHANNEL FOR IO STATE
marking
CE
mounting support
SYMMETRICAL DIN RAIL
width
262.5 MM
height
99 MM
depth
85 MM
product weight
0.8 KG
