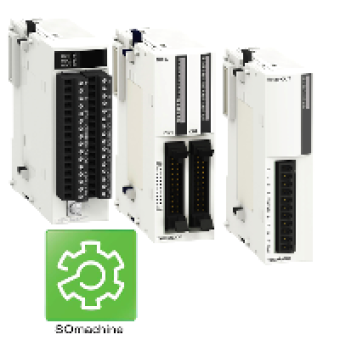

TM2DDI32DK - discrete input module M238 - 32 inputs 24 V DC - 1 connector HE10, Schneider Electric
- Product Code: TM2DDI32DK
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON M238 LOGIC CONTROLLER
product or component type
DISCRETE INPUT MODULE
discrete input number
32
discrete input voltage
24 V
discrete input voltage type
DC
COMPLEMETARY CHARACTERISTICS
range compatibility
ADVANTYS OTB
input voltage limits
20.4..28.8 V
discrete input logic
SINK OR SOURCE
discrete input current
5 MA
input impedance
4.4 KOHM
number of common point
2
response time
4 MS AT STATE 0
isolation between channels
NONE
isolation between channels and internal logic
500 V FOR 1 MINUTE
current consumption
65 MA 5 V DC AT STATE 1 FOR ALL INPUT
local signalling
2 DISPLAY BLOCKS
electrical connection
1 CONNECTOR HE10
mounting support
35 MM SYMMETRICAL DIN RAIL
product weight
0.081 KG
