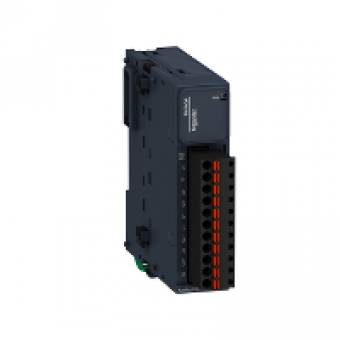

TM3AQ4G - module TM3 - 4 analog outputs spring, Schneider Electric
- Product Code: TM3AQ4G
- Brand: Schneider Electric
- Availability: To be confirmed
- € 136.27 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM3
product or component type
ANALOG OUTPUT MODULE
range compatibility
MODICON M221
analogue output number
4
analogue output type
4...20 mA current
COMPLEMETARY CHARACTERISTICS
analogue input resolution
12 BITS
analogue output resolution
11 BITS + SIGN
LSB value
2.44 mV, analogue input: 0...10 V voltage
load type
RESISTIVE
load impedance ohmic
1 kOhm voltage
stabilisation time
1 MS
conversion time
1 ms + 1 ms per channel + 1 controller cycle time
absolute accuracy error
+/- 1 % of full scale
temperature drift
+ - 0.01 PT FS D C
repeat accuracy
+- 0.4 FS
non-linearity
+- 0.2 FS
output ripple
20 MV
cross talk
<= 1 LSB
[Us] rated supply voltage
24 V DC
supply voltage limits
20.4...28.8 V
type of cable
TWISTED SHIELDED PAIRS CABLE FOR OUTPUT CIRCUIT
current consumption
40 mA at 5 V DC (no load) via bus connector
local signalling
1 LED GREEN FOR PWR
electrical connection
11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm adjustment for outputs and supply
insulation
1500 V AC between output and supply
marking
CE
surge withstand
1 kV for power supply with common mode protection conforming to EN/IEC 61000-4-5
mounting support
top hat type TH35-15 rail conforming to IEC 60715
height
90 MM
depth
70 MM
width
23.6 MM
product weight
0.1 KG
The Schneider Electric TM3AQ4G is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
