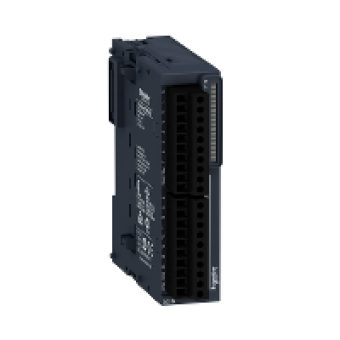

TM3DI16 - module TM3 - 16 inputs, Schneider Electric
- Product Code: TM3DI16
- Brand: Schneider Electric
- Availability: To be confirmed
- € 119.55 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM3
product or component type
DISCRETE INPUT MODULE
range compatibility
MODICON M221
discrete input number
16 input conforming to IEC 61131-2 type 3
discrete input logic
SINK OR SOURCE POSITIVENEGATIVE
discrete input voltage
24 V
discrete input current
7 mA for input
COMPLEMETARY CHARACTERISTICS
discrete I/O number
16
current consumption
40 mA at 5 V DC via bus connector at state on
discrete input voltage type
DC
voltage state 1 guaranteed
15...28.8 V for input
current state 1 guaranteed
>= 2.5 MA FOR INPUT
voltage state 0 guaranteed
0...5 V for input
current state 0 guaranteed
<= 1 MA FOR INPUT
input impedance
3.4 kOhm
response time
4 ms for turn-on
local signalling
1 LED per channel green for input status
electrical connection
removable screw terminal block pitch 3.81 mm with 10 terminal(s) of 1.5 mm² connection capacity for inputs
max cable distance between devices
UNSHIELDED CABLE 50 M FOR REGULAR INPUT
insulation
500 V AC between input and internal logic
marking
CE
mounting support
top hat type TH35-15 rail conforming to IEC 60715
height
90 MM
depth
84.6 MM
width
27.4 MM
product weight
0.1 KG
