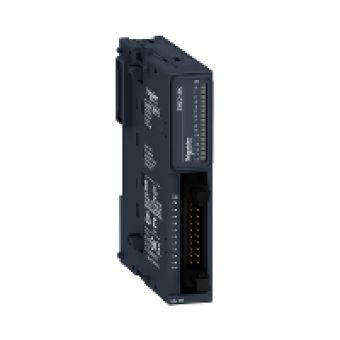

TM3DI16K - module TM3 - 16 inputs HE10, Schneider Electric
- Product Code: TM3DI16K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 96.49 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM3
product or component type
DISCRETE INPUT MODULE
range compatibility
MODICON M221
discrete input number
16 input conforming to IEC 61131-2 type 3
discrete input logic
SINK OR SOURCE POSITIVENEGATIVE
discrete input voltage
24 V
discrete input current
5 mA for input
COMPLEMETARY CHARACTERISTICS
discrete I/O number
16
current consumption
5 mA at 5 V DC via bus connector at state off
discrete input voltage type
DC
voltage state 1 guaranteed
15...28.8 V for input
current state 1 guaranteed
>= 2.5 MA FOR INPUT
voltage state 0 guaranteed
0...5 V for input
current state 0 guaranteed
<= 1 MA FOR INPUT
input impedance
4.4 kOhm
response time
4 ms for turn-on
local signalling
1 LED per channel green for input status
electrical connection
HE-10 connector for inputs
max cable distance between devices
UNSHIELDED CABLE 50 M FOR REGULAR INPUT
insulation
500 V AC between input and internal logic
marking
CE
mounting support
top hat type TH35-15 rail conforming to IEC 60715
height
90 MM
depth
81.3 MM
width
21.4 MM
product weight
0.65 KG
