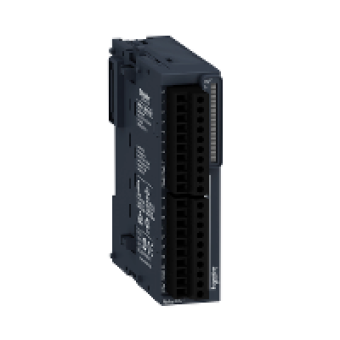

TM3DQ16R - module TM3 - 16 outputs relays, Schneider Electric
- Product Code: TM3DQ16R
- Brand: Schneider Electric
- Availability: To be confirmed
- € 131.71 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM3
product or component type
DISCRETE OUTPUT MODULE
range compatibility
MODICON M221
discrete output type
RELAY NORMALLY OPEN
discrete output number
16
discrete output logic
POSITIVE LOGIC SOURCE
discrete output voltage
240 V AC for relay output
discrete output current
2000 mA for relay output
COMPLEMETARY CHARACTERISTICS
discrete I/O number
16
current consumption
0 mA at 24 V DC via bus connector at state off
response time
10 ms for turn-on
mechanical durability
20000000 cycles
minimum load
10 mA at 5 V DC for relay output
local signalling
1 LED per channel green for output status
electrical connection
removable screw terminal block pitch 3.81 mm with 10 terminal(s) of 1.5 mm² connection capacity for outputs
max cable distance between devices
UNSHIELDED CABLE 30 M FOR RELAY OUTPUT
insulation
2300 V AC between output and internal logic
marking
CE
mounting support
top hat type TH35-15 rail conforming to IEC 60715
height
90 MM
depth
84.6 MM
width
27.4 MM
product weight
0.145 KG
