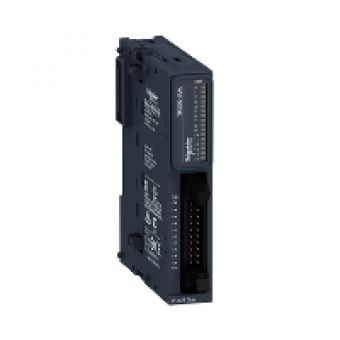

TM3DQ16UK - module TM3 - 16 outputs transistor NPN HE10, Schneider Electric
- Product Code: TM3DQ16UK
- Brand: Schneider Electric
- Availability: To be confirmed
- € 100.26 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM3
product or component type
DISCRETE OUTPUT MODULE
range compatibility
MODICON M221
discrete output type
TRANSISTOR
discrete output number
16
discrete output logic
NEGATIVE LOGIC SINK
discrete output voltage
24 V DC for transistor output
discrete output current
100 mA for transistor output
COMPLEMETARY CHARACTERISTICS
discrete I/O number
16
current consumption
5 mA at 5 V DC via bus connector at state off
response time
450 µs for turn-on
leakage current
0.1 mA for transistor output
voltage drop
0.4 V
local signalling
1 LED per channel green for output status
electrical connection
HE-10 connector for outputs
max cable distance between devices
UNSHIELDED CABLE 5 M FOR TRANSISTOR OUTPUT
insulation
500 V AC between output and internal logic
marking
CE
mounting support
top hat type TH35-15 rail conforming to IEC 60715
height
90 MM
depth
81.3 MM
width
21.4 MM
product weight
0.111 KG
