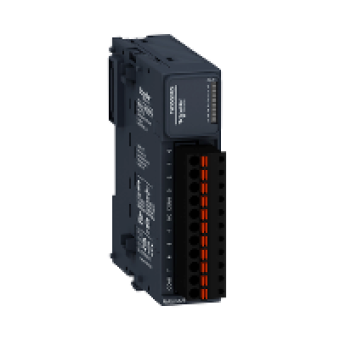

TM3DQ8RG - module TM3 - 8 outputs relays spring, Schneider Electric
- Product Code: TM3DQ8RG
- Brand: Schneider Electric
- Availability: To be confirmed
- € 100.79 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM3
product or component type
DISCRETE OUTPUT MODULE
range compatibility
MODICON M221
discrete output type
RELAY NORMALLY OPEN
discrete output number
8
discrete output logic
POSITIVE OR NEGATIVE
discrete output voltage
24 V DC for relay output
discrete output current
2000 mA for relay output
COMPLEMETARY CHARACTERISTICS
discrete I/O number
8
current consumption
5 mA at 5 V DC via bus connector at state off
response time
10 ms for turn-on
mechanical durability
20000000 cycles
minimum load
10 mA at 5 V DC for relay output
local signalling
1 LED per channel green for output status
electrical connection
removable spring terminal block pitch 5.08 mm with 11 terminal(s) of 2.5 mm² connection capacity for outputs
max cable distance between devices
UNSHIELDED CABLE 30 M FOR RELAY OUTPUT
insulation
2300 V AC between output and internal logic
marking
CE
mounting support
top hat type TH35-15 rail conforming to IEC 60715
height
90 MM
depth
84.6 MM
width
27.4 MM
product weight
0.11 KG
The Schneider Electric TM3DQ8RG is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
