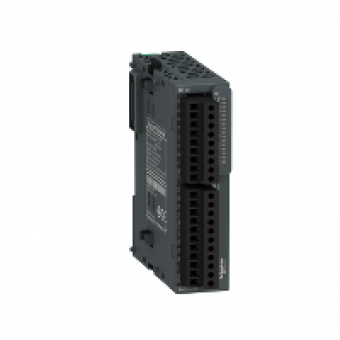

TM3RDM16R - module TM3 - 8 digital inputs and 8 digital outputs, Schneider Electric
- Product Code: TM3RDM16R
- Brand: Schneider Electric
- Availability: To be confirmed
- € 96.32 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM3
product or component type
DISCRETE I O MODULE
range compatibility
MODICON EASY M200
discrete input number
8 input conforming to IEC 61131-2 Type 1
discrete input logic
SINK OR SOURCE POSITIVENEGATIVE
discrete input voltage
24 V
discrete input current
5 mA for input
discrete output type
RELAY NORMALLY OPEN
discrete output number
8
discrete output logic
POSITIVE OR NEGATIVE
discrete output voltage
24 V DC for relay output
discrete output current
2000 mA for relay output
COMPLEMETARY CHARACTERISTICS
discrete I/O number
16
current consumption
70 mA at 5 V DC via bus connector at state on
discrete input voltage type
DC
voltage state 1 guaranteed
15...28.8 V for input
current state 1 guaranteed
>= 2.5 MA FOR INPUT
voltage state 0 guaranteed
0...5 V for input
current state 0 guaranteed
<= 1 MA FOR INPUT
input impedance
4.7 KOHM
response time
4 ms for turn-on
current per output common
4 A
mechanical durability
20000000 cycles
minimum load
10 mA at 5 V DC for relay output
local signalling
1 LED per channel green for I/O state
electrical connection
removable screw terminal block pitch 3.81 mm with 11 terminal(s) of 1.5 mm² connection capacity for outputs
max cable distance between devices
UNSHIELDED CABLE 50 M FOR INPUT
insulation
500 V AC between input and internal logic
marking
CE
mounting support
top hat type TH35-15 rail conforming to IEC 60715
height
90 MM
depth
84.6 MM
width
27.4 MM
product weight
0.118 KG
