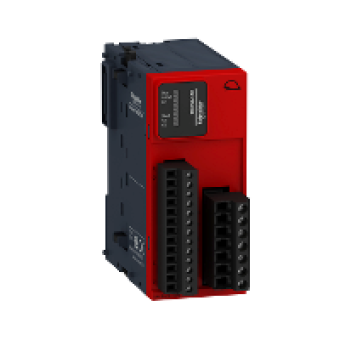

TM3SAC5R - SAFETY MODULE FOR PLC TM2xx 1 FUNCTION CAT3 SCREW TERMINALS, Schneider Electric
- Product Code: TM3SAC5R
- Brand: Schneider Electric
- Availability: To be confirmed
- € 89.68 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM3 SAFETY
product or component type
SAFETY MODULE
device short name
TM3SAC
safety module application
F EMERGENCY STOP+SWITCH MNTRG
function of module
emergency stop monitoring 1-channel wiring
safety level
CAN REACH PL DCATEGORY 3 ENISO 13849-12008
COMPLEMETARY CHARACTERISTICS
safety reliability data
DC = 95 ENISO 13849-1
synchronisation time between inputs
unlimited
connections - terminals
CAPTIVE SCREW CLAMP TERMINALS REMOVABLE TERMINAL BLOCK 1 X 0.2...1 X 2.5 MM FLEXIBLE WITHOUT CABLE END 13-14 23-24 33-34
number of safety circuits
3 NO (relay instantaneous opening)
maximum switching voltage
230 V utilisation category AC-15 at 50 Hz (relay instantaneous opening)
[Us] rated supply voltage
24 V DC - 15...20
power consumption in W
0.2 W 5 V
input protection type
INTERNAL ELECTRONIC
[Uc] control circuit voltage
24 V DC
max cable distance between devices
30 M
breaking capacity
360 VA HOLDING AC-15 B300 RELAY OUTPUT
breaking capacity
4 A 24 V 50 MS DC-13 RELAY OUTPUT
output thermal current
6 A PER RELAY RELAY OUTPUT
[Ith] conventional free air thermal current
18 A
associated fuse rating
4 A GG OR GL RELAY OUTPUT ENIEC 60947-5-1
minimum output current
10 MA RELAY OUTPUT
output voltage
10 V RELAY OUTPUT
response time on input open
<= 40 MS
[Ui] rated insulation voltage
300 V 2 IEC 60647-5-1
[Uimp] rated impulse withstand voltage
4 KV III IEC 60647-5-1
current consumption
100 MA 24 V DC EXTERNAL SUPPLY AT STATE ON
local signalling
6 LEDS GREENRED USER
electrical connection
SCREW TERMINAL
standards
ENISO 13849-12008
product certifications
TUV
marking
CE
electromagnetic compatibility
electrostatic discharge immunity test 8 kV air discharge conforming to EN/IEC 61000-4-2
mounting support
RAIL TOP HAT TYPE TH35-7.5 IEC 60715
height
94 MM
depth
73 MM
width
43.7 MM
product weight
0.19 KG
