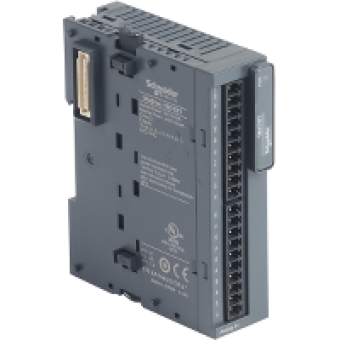

TM3TI8T - module TM3 - 8 inputs temperature, Schneider Electric
- Product Code: TM3TI8T
- Brand: Schneider Electric
- Availability: To be confirmed
- € 171.97 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM3
product or component type
ANALOG INPUT MODULE
range compatibility
MODICON M221
analogue input number
8
analogue input type
thermocouple, analogue input range: - 200...1000 °C with thermocouple J
COMPLEMETARY CHARACTERISTICS
analogue input resolution
16 BITS
input impedance
>= 1 MOHM THERMOCOUPLE
LSB value
0.1 DC THERMOCOUPLE
conversion time
100 ms + 100 ms per channel + 1 controller cycle time
sampling duration
100 ms
absolute accuracy error
+ - 0.2 OF FULL SCALE AT 25 C FOR THERMOCOUPLE C
temperature drift
+ - 0.01 PT FS D C
repeat accuracy
+-0.5 FS
non-linearity
+- 0.2 FS
cross talk
<= 1 LSB
[Us] rated supply voltage
24 V DC
supply voltage limits
20.4...28.8 V
type of cable
TWISTED SHIELDED PAIRS CABLE FOR INPUT CIRCUIT
current consumption
30 mA at 24 V DC via external supply
local signalling
1 LED GREEN FOR PWR
electrical connection
10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply
insulation
1500 V AC between input and supply
marking
CE
surge withstand
1 kV for power supply with common mode protection conforming to EN/IEC 61000-4-5
mounting support
top hat type TH35-15 rail conforming to IEC 60715
height
90 MM
depth
70 MM
width
23.6 MM
product weight
0.11 KG
