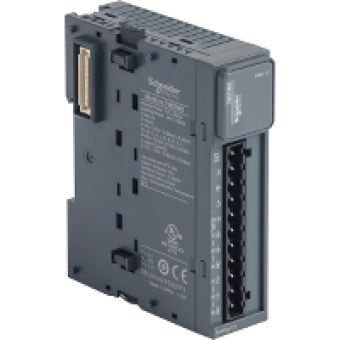

TM3TM3 - module TM3 - 2 temperature inputs and 1 analog output, Schneider Electric
- Product Code: TM3TM3
- Brand: Schneider Electric
- Availability: To be confirmed
- € 177.62 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM3
product or component type
INPUT OUTPUT ANALOG MODULE
range compatibility
MODICON M221
analogue input number
2
analogue input type
current, analogue input range: 4...20 mA
analogue output number
1
analogue output type
4...20 mA current
COMPLEMETARY CHARACTERISTICS
analogue input resolution
16 BITS
permissible continuous overload
13 V VOLTAGE
input impedance
<= 50 Ohm current
analogue output resolution
12 BITS
LSB value
0.15 mV, analogue input: 0...10 V voltage
load type
RESISTIVE
load impedance ohmic
1 kOhm voltage
stabilisation time
1 MS
conversion time
100 ms + 100 ms per channel + 1 controller cycle time for analogue input thermocouple
sampling duration
10 ms for analogue input voltage/current
absolute accuracy error
+ - 6 C AT 25 C FOR THERMOCOUPLE R S
temperature drift
+ - 0.006 PT FS D C
repeat accuracy
+/-0.5 %FS for input
non-linearity
+/- 0.01 %FS analog output
output ripple
20 MV
cross talk
<= 1 LSB
[Us] rated supply voltage
24 V DC
supply voltage limits
20.4...28.8 V
type of cable
TWISTED SHIELDED PAIRS CABLE FOR INPUT OUTPUT CIRCUIT
current consumption
55 mA at 24 V DC (no load) via external supply
local signalling
1 LED GREEN FOR PWR
electrical connection
11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs, outputs and supply
insulation
1500 V AC between input and supply
marking
CE
surge withstand
1 kV for power supply with common mode protection conforming to EN/IEC 61000-4-5
mounting support
top hat type TH35-15 rail conforming to IEC 60715
height
90 MM
depth
70 MM
width
23.6 MM
product weight
0.115 KG
The Schneider Electric TM3TM3 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
