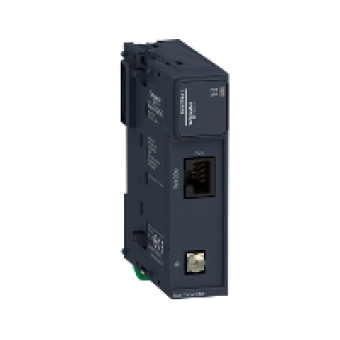

TM3XTRA1 - remote transmitter module TM3 - bus, Schneider Electric
- Product Code: TM3XTRA1
- Brand: Schneider Electric
- Availability: To be confirmed
- € 65.08 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM3
product or component type
REMOTE TRANSMITTER MODULE
range compatibility
MODICON M221
COMPLEMETARY CHARACTERISTICS
current consumption
100 mA at 5 V DC via bus connector at state on
power dissipation in W
<= 0.6 W
cable length
0.5...5 m extension cable with 2 RJ45 conductor between receiver and transmitter
local signalling
1 LED GREEN FOR POWER SUPPLY
electrical connection
RJ45 connector for connecting the bus receiver
marking
CE
resistance to electrostatic discharge
8 KV IN AIR - ENIEC 61000-4-2
resistance to electromagnetic fields
10 V/m (80 MHz...1 GHz) - EN/IEC 61000-4-3
resistance to conducted disturbances
10 Vrms (0.15...80 MHz) - EN/IEC 61000-4-6
electromagnetic emission
radiated emissions - EN/IEC 55011 class A 10 m, 30...230 MHz : 40 dBμV/m QP
mounting support
top hat type TH35-15 rail conforming to IEC 60715
height
90 MM
depth
73.3 MM
width
23.65 MM
product weight
0.065 KG
