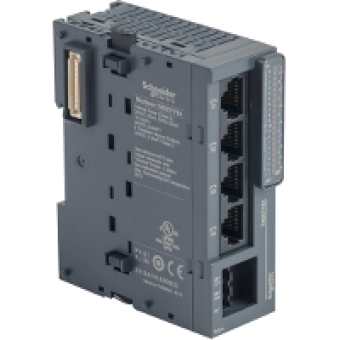

TM3XTYS4 - module TM3 tesys interface 4XRJ45, Schneider Electric
- Product Code: TM3XTYS4
- Brand: Schneider Electric
- Availability: To be confirmed
- € 79.67 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM3
product or component type
PARALLEL INTERFACE MODULE
product specific application
TESYS QUICKFIT
range compatibility
MODICON M221
[Us] rated supply voltage
24 V DC by external supply (- 15...20 %)
number of input channels
12
number of output channels
8
COMPLEMETARY CHARACTERISTICS
current consumption
5 mA at 5 V DC via bus connector at state on
input voltage limits
19.2...28.8 V per input
input current limits
5 mA per input
response time
< 10 ms turn-on for input
output voltage
24 V DC (transistor output)
maximum load current
800 mA per channel in starting mode during 100 ms
insulation
between the RJ45 connectors and internal logic : 500 V AC
output protection type
against overload by current limiter
reset
AUTOMATIC RESET
local signalling
3 LEDs green per channel for input status
electrical connection
removable screw terminal block with pitch 5.08 mm, clamping capacity 2.5 mm², 3 terminals for connecting the 24 V DC power supply
standards
EN IEC 61131-2
product certifications
C-TICK
marking
CE
resistance to electrostatic discharge
8 KV IN AIR - ENIEC 61000-4-2
resistance to electromagnetic fields
10 V/m (80 MHz...1 GHz) - EN/IEC 61000-4-3
resistance to magnetic fields
30 A M - EN IEC 61000-4-8
resistance to fast transients
1 kV for input - EN/IEC 61000-4-4
surge withstand
1 kV for input in common mode - EN/IEC 61000-4-5
resistance to conducted disturbances
10 Vrms (0.15...80 MHz) - EN/IEC 61000-4-6
electromagnetic emission
radiated emissions - EN/IEC 55011 class A 10 m, 30...230 MHz : 40 dBμV/m QP
vibration resistance
3.5 mm (f = 5...8.4 Hz) on DIN rail
shock resistance
15 gn during 11 ms
mounting support
rail top hat type TH35-15 conforming to IEC 60715
height
90 MM
depth
85 MM
width
30 MM
product weight
0.115 KG
