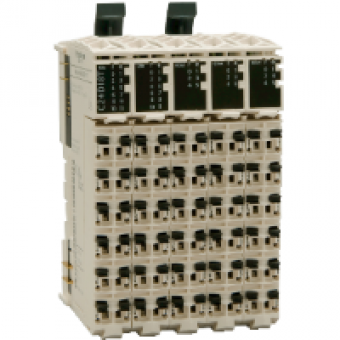

TM5C12D8T - compact I/O expansion block TM5 - 20 I/O - 12 DI - 8 DO transistor, Schneider Electric
- Product Code: TM5C12D8T
- Brand: Schneider Electric
- Availability: To be confirmed
- € 200.26 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM5
product or component type
COMPACT I O EXPANSION BLOCK
COMPLEMETARY CHARACTERISTICS
enclosure material
PLASTIC
colour
WHITE
input/output number
20
for enclosure nominal dimensions
12 I + 8 O
number of modules
3 MODULES WITH 4 DIGITAL INPUT
discrete input number
12
discrete input voltage
24 V
discrete input voltage type
DC
input voltage limits
20.4..28.8 V
discrete input logic
SINK
discrete input current
3.75 MA
input impedance
6.4 KOHM
analogue input number
0
discrete output number
8
discrete output type
TRANSISTOR
wiring mode
3-WIRE DISCRETE INPUT
output voltage
24 V DC
output voltage limits
20.4..28.8 V DC
discrete output logic
SOURCE
discrete output current
0.5 A PER OUTPUT
peak output current
<= 4 A
voltage state 0 guaranteed
<= 5 V
voltage state 1 guaranteed
>= 15 V
input filtering
<= 100 MS HARDWARE
response time
<= 300 S FROM STATE 0 TO STATE 1 OUTPUT
leakage current
5 A WHEN SWITCHED OFF OUTPUT
isolation
NO INSULATION BETWEEN CHANNELS
voltage drop
<= 0.3 V AT 500 MA OUTPUT
current consumption
68 MA 5 V DC BUS
max current
1000 MA SENSOR SUPPLY
power dissipation in W
<= 2.36 W
local signalling
5 LEDS GREEN POWER SUPPLY
sensor power supply
24 V 500 MA FOR ALL CHANNELS OVERLOAD SHORT-CIRCUIT AND REVERSE POLARITY PROTECTION
electrical connection
REMOVABLE SPRING TERM BLOCK
marking
CE
surge withstand
0.5 KV DIFFERENTIAL MODE 24 V DC ENIEC 61000-4-5
electromagnetic compatibility
EN IEC 61000-4-6
disturbance radiated/conducted
CISPR11
The Schneider Electric TM5C12D8T is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
