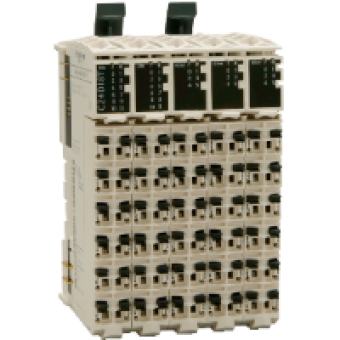

• TM5C24D12R - compact I/O expansion block TM5 - 36 I/O - 24 DI - 12 DO relay, Schneider Electric

TM5C24D12R - compact I/O expansion block TM5 - 36 I/O - 24 DI - 12 DO relay, Schneider Electric

  • € 286.16 Ex Tax:

MAIN CHARACTERISTICS
range of product
MODICON TM5
product or component type
COMPACT I O EXPANSION BLOCK
COMPLEMETARY CHARACTERISTICS
enclosure material
PLASTIC
colour
WHITE
input/output number
36
for enclosure nominal dimensions
24 I + 12 O
number of modules
2 MODULES WITH 12 DIGITAL INPUT
discrete input number
24
discrete input voltage
24 V
discrete input voltage type
DC
input voltage limits
20.4..28.8 V
discrete input logic
SINK
discrete input current
3.75 MA
input impedance
6.4 KOHM
analogue input number
0
discrete output number
12
discrete output type
RELAY
wiring mode
1 WIRE DISCRETE INPUT
output voltage
30 V DC
output voltage limits
24..36 V DC
discrete output function
1 NO
discrete output logic
SOURCE OR SINK
discrete output current
2 A PER OUTPUT
voltage state 0 guaranteed
<= 5 V
voltage state 1 guaranteed
>= 15 V
input filtering
<= 100 MS HARDWARE
response time
<= 12 MS FROM STATE 0 TO STATE 1 OUTPUT
minimum switching current
10 MA 5 V DC
isolation
NO INSULATION BETWEEN CHANNELS
mechanical durability
20000000 CYCLES
current consumption
68 MA 5 V DC BUS
power dissipation in W
<= 4.3 W
local signalling
24 LEDS GREEN INPUT STATUS
electrical connection
REMOVABLE SPRING TERM BLOCK
marking
CE
surge withstand
0.5 KV DIFFERENTIAL MODE 24 V DC ENIEC 61000-4-5
electromagnetic compatibility
EN IEC 61000-4-6
disturbance radiated/conducted
CISPR11
