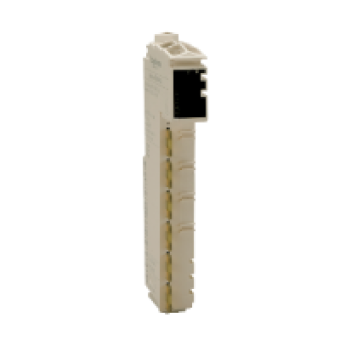

TM5SAI4PH - analog input module - 4I - temperature probe PT100/PT1000 - 16 bits, Schneider Electric
- Product Code: TM5SAI4PH
- Brand: Schneider Electric
- Availability: To be confirmed
- € 317.12 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM5
product or component type
ANALOG INPUT MODULE
analogue input number
4
analogue input type
TEMPERATURE PROBE - 200...850 C PT 100PT 1000
analogue input resolution
16 BITS
COMPLEMETARY CHARACTERISTICS
range compatibility
MODICON LMC058
product compatibility
MOTION CONTROLLER
measurement resolution
0.1 DC
colour
WHITE
measurement error
< 0.037 OF FULL SCALE - 200...850 C PT 100PT 1000 AT 25 C
temperature coefficient
0.004 FSC ANALOGUE INPUT TYPE TEMPERATURE PROBE
non-linearity
0.001 FS ANALOGUE INPUT TYPE TEMPERATURE PROBE
type of cable
SHIELDED CABLE
isolation
NO INSULATION BETWEEN CHANNELS
supply
INTERNAL
[Us] rated supply voltage
24 V DC -15..20
common mode rejection
>= 95 DB
local signalling
1 LED GREEN FOR POWER SUPPLY
current consumption
2 MA 5 V DC BUS
power dissipation in W
<= 1.11 W
marking
CE
product weight
0.025 KG
