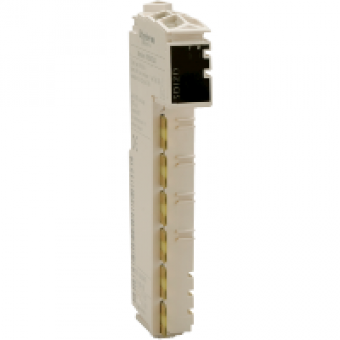

TM5SDI12DK - Composition kit of I/O(TM5SDI12D) + term. block(TM5ACTB12) + bus base(TM5ACBM11), Schneider Electric
- Product Code: TM5SDI12DK
- Brand: Schneider Electric
- Availability: To be confirmed
- € 113.61 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM5
product or component type
DISCRETE INPUT MODULE
discrete input number
12
discrete input voltage
24 V
COMPLEMETARY CHARACTERISTICS
device composition
BUS SUB-BASE TM5ACBM11
range compatibility
MODICON LMC058
product compatibility
MOTION CONTROLLER
discrete input voltage type
DC
input voltage limits
20.4..28.8 V
discrete input logic
SINK
discrete input current
3.75 MA
input impedance
6.4 KOHM
colour
WHITE
voltage state 0 guaranteed
<= 5 V
voltage state 1 guaranteed
>= 15 V
input filtering
<= 25 MS CONFIGURABLE BY SOFTWARE
isolation
NO INSULATION BETWEEN CHANNELS
current consumption
36 MA 5 V DC
power dissipation in W
<= 1.93 W
local signalling
1 LED GREEN FOR POWER SUPPLY
electrical connection
1 WIRE
marking
CE
product weight
0.065 KG
