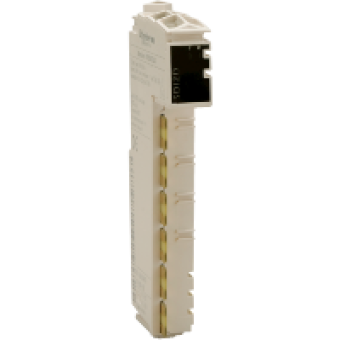

TM5SDM12DT - digital I/O module - 8I - 4O - 24V DC - 1 wire, Schneider Electric
- Product Code: TM5SDM12DT
- Brand: Schneider Electric
- Availability: To be confirmed
- € 110.37 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM5
product or component type
DISCRETE I O MODULE
discrete input number
8
discrete input voltage
24 V
discrete output number
4
discrete output type
TRANSISTOR
COMPLEMETARY CHARACTERISTICS
range compatibility
MODICON LMC058
product compatibility
MOTION CONTROLLER
discrete input voltage type
DC
input voltage limits
20.4..28.8 V
discrete input logic
SINK
discrete input current
3.75 MA
input impedance
6.4 KOHM
output voltage
24 V DC
output voltage limits
20.4..28.8 V
discrete output logic
SOURCE
current per channel
0.5 A
current per output common
<= 2 A
colour
WHITE
peak output current
<= 12 A
switching frequency
<= 500 HZ RESISTIVE LOAD
voltage state 0 guaranteed
<= 5 V
voltage state 1 guaranteed
>= 15 V
input filtering
<= 25 MS CONFIGURABLE BY SOFTWARE
response time
<= 300 S FROM STATE 0 TO STATE 1 FOR OUTPUT
leakage current
5 A WHEN SWITCHED OFF
protection type
OVERLOAD PROTECTION
isolation
NO INSULATION BETWEEN CHANNELS
voltage drop
<= 0.3 V AT 500 MA FOR OUTPUT
current consumption
42 MA 5 V DC BUS
power dissipation in W
<= 1.52 W
local signalling
1 LED GREEN FOR POWER SUPPLY
electrical connection
1 WIRE
marking
CE
product weight
0.025 KG
