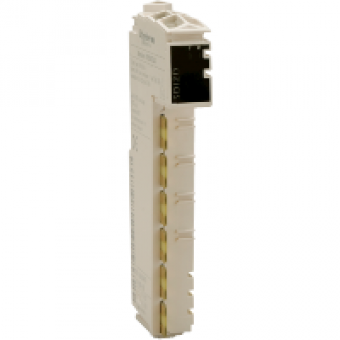

TM5SDO12TK - Composition kit of I/O(TM5SDO12T) + term. block(TM5ACTB12) + bus base(TM5ACBM11), Schneider Electric
- Product Code: TM5SDO12TK
- Brand: Schneider Electric
- Availability: To be confirmed
- € 134.34 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM5
product or component type
DISCRETE OUTPUT MODULE
discrete output number
12
discrete output type
TRANSISTOR
output voltage
24 V DC
COMPLEMETARY CHARACTERISTICS
device composition
BUS SUB-BASE TM5ACBM11
range compatibility
MODICON LMC058
product compatibility
MOTION CONTROLLER
output voltage limits
20.4..28.8 V
discrete output logic
SOURCE
current per channel
0.5 A
current per output common
<= 6 A
colour
WHITE
peak output current
<= 12 A
switching frequency
<= 500 HZ RESISTIVE LOAD
response time
<= 300 S FROM STATE 0 TO STATE 1 FOR OUTPUT
leakage current
5 A WHEN SWITCHED OFF
short-circuit protection
WITH
overload protection
WITH
reverse polarity protection
WITH
isolation
NO INSULATION BETWEEN CHANNELS
voltage drop
<= 0.3 V AT 500 MA FOR OUTPUT
supply current for sensors
500 MA
current consumption
48 MA 5 V DC
power dissipation in W
<= 2.04 W
local signalling
1 LED GREEN FOR POWER SUPPLY
electrical connection
1 WIRE
marking
CE
product weight
0.065 KG
