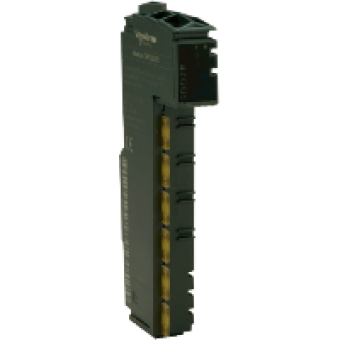

TM5SDO4R - digital output module - 4O - 30V DC/230V AC - 5A - relay - 4 C/O, Schneider Electric
- Product Code: TM5SDO4R
- Brand: Schneider Electric
- Availability: To be confirmed
- € 99.13 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM5
product or component type
DISCRETE OUTPUT MODULE
discrete output number
4
discrete output type
RELAY
COMPLEMETARY CHARACTERISTICS
range compatibility
PACDRIVE LMC MOTION CONTROLLER
product compatibility
PACDRIVE LMC PRO
output voltage
230 V AC
output voltage limits
184..276 V AC
discrete output function
4 NO
current per channel
5 A
current per output common
<= 10 A
colour
BLACK
response time
<= 10 MS FROM STATE 0 TO STATE 1 FOR OUTPUT
protection type
REVERSE POLARITY PROTECTION
isolation
NO INSULATION BETWEEN CHANNELS
mechanical durability
>= 20000000 CYCLES
electrical durability
500000 CYCLES 5 A
current consumption
160 MA 5 V DC BUS
power dissipation in W
<= 2.3 W
marking
CE
product weight
0.025 KG
