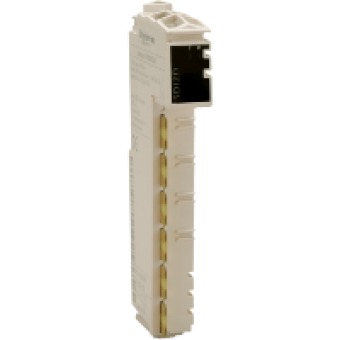

TM5SDO6T - digital output module - 6O - 24V DC - 0 5A - 2 wires, Schneider Electric
- Product Code: TM5SDO6T
- Brand: Schneider Electric
- Availability: To be confirmed
- € 66.74 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM5
product or component type
DISCRETE OUTPUT MODULE
discrete output number
6
discrete output type
TRANSISTOR
COMPLEMETARY CHARACTERISTICS
range compatibility
MODICON LMC058
product compatibility
MOTION CONTROLLER
output voltage
24 V DC
output voltage limits
20.4..28.8 V
discrete output logic
SOURCE
current per channel
0.5 A
current per output common
<= 3 A
colour
WHITE
peak output current
<= 12 A
switching frequency
<= 500 HZ RESISTIVE LOAD
response time
<= 300 S FROM STATE 0 TO STATE 1 FOR OUTPUT
leakage current
5 A WHEN SWITCHED OFF
protection type
OVERLOAD PROTECTION
isolation
NO INSULATION BETWEEN CHANNELS
voltage drop
<= 0.3 V AT 500 MA FOR OUTPUT
supply current for sensors
500 MA
current consumption
36 MA 5 V DC BUS
power dissipation in W
<= 1.2 W
local signalling
1 LED GREEN FOR POWER SUPPLY
electrical connection
2 WIRES
marking
CE
product weight
0.025 KG
