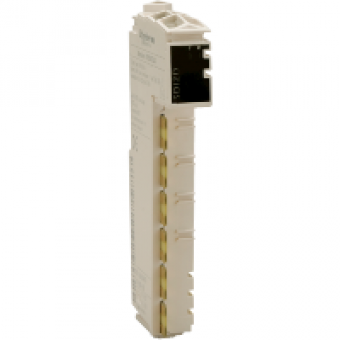

TM5SDO8TA - digital output module - 8O - 24V DC - 2A - 1 wire, Schneider Electric
- Product Code: TM5SDO8TA
- Brand: Schneider Electric
- Availability: To be confirmed
- € 145.08 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM5
product or component type
DISCRETE OUTPUT MODULE
discrete output number
8
discrete output type
TRANSISTOR
COMPLEMETARY CHARACTERISTICS
range compatibility
MODICON LMC058
product compatibility
MOTION CONTROLLER
output voltage
24 V DC
output voltage limits
20.4..28.8 V
discrete output logic
SOURCE
current per channel
2 A
current per output common
<= 8 A
colour
WHITE
peak output current
<= 12 A
switching frequency
<= 500 HZ RESISTIVE LOAD
response time
<= 300 S FROM STATE 0 TO STATE 1 FOR OUTPUT
leakage current
5 A WHEN SWITCHED OFF
protection type
OVERLOAD PROTECTION
isolation
NO INSULATION BETWEEN CHANNELS
current consumption
0 MA 24 V DC INPUTOUTPUT
power dissipation in W
<= 1.5 W
local signalling
1 LED GREEN FOR POWER SUPPLY
electrical connection
1 WIRE
marking
CE
product weight
0.025 KG
