• TM5SMM6D2L - I/O module, Schneider Electric

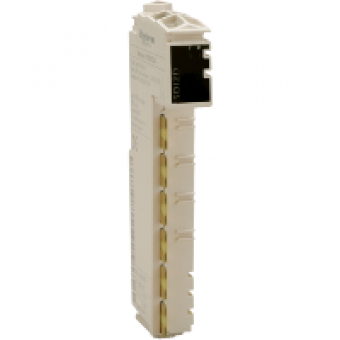

TM5SMM6D2L - I/O module, Schneider Electric

  • € 141.33 Ex Tax:

MAIN CHARACTERISTICS
range of product
MODICON TM5
product or component type
MIXED I O MODULE
range compatibility
MODICON LMC058
product compatibility
MOTION CONTROLLER
COMPLEMETARY CHARACTERISTICS
discrete input number
4
discrete input voltage
24 V
discrete input voltage type
DC
input voltage limits
20.4..28.8 V
discrete input logic
SINK
discrete input current
3.3 MA
voltage state 0 guaranteed
<= 5 V
voltage state 1 guaranteed
>= 15 V
input filtering
<= 2 S HARDWARE
analogue input number
1
analogue input type
VOLTAGE +- 10 V
analogue input resolution
12 BITS + SIGN FOR VOLTAGE
common mode rejection
70 DB DC FOR ANALOG INPUT
discrete output number
2
discrete output type
TRANSISTOR
output voltage
24 V DC
output voltage limits
20.4..28.8 V
discrete output logic
SOURCE
discrete output current
<= 0.5 A PER OUTPUT
peak output current
<= 14 A
leakage current
5 A WHEN SWITCHED OFF FOR D
switching frequency
100 HZ RESISTIVE FOR DIGITAL
analogue output number
1
analogue output type
VOLTAGE + - 10 V
conversion time
300 S FOR ANALOG OUTPUT
analogue output resolution
12 BITS + SIGN +- 10 V
measurement resolution
2.441 MV +- 10 V +- 10 V
colour
WHITE
response time
<= 250 S FROM STATE 0 TO STA
input impedance
7.18 KOHM DIGITAL
output impedance
>= 1 KOHM +- 10 V AT 0...55 C
load impedance ohmic
<= 400 OHM OUTPUT 0...20 MA AT 0...55 C
sampling duration
300 S FOR ANALOG INPUT
measurement error
< 0.08 OF FULL SCALE INPUT +- 10 V AT 25 C
temperature coefficient
+- 0.009 FSC INPUT 0...20 MA4...20 MA
non-linearity
+- 0.02 FS INPUT 0 - 20 MA
type of cable
SHIELDED CABLE
isolation
NO INSULATION BETWEEN CHANNELS
supply
INTERNAL
[Us] rated supply voltage
24 V DC -15 - 20
local signalling
1 LED GREEN FOR POWER SUPPLY
wiring mode
1 WIRE FOR DIGITAL INPUTOUTPU
current consumption
2 MA AT 5 V DC FOR BUS
power dissipation in W
<= 1.75 W
protection type
AGAINST REVERSE POLARITY FOR DIGITAL OUTPUT
marking
CE
product weight
0.025 KG
The Schneider Electric TM5SMM6D2L is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
