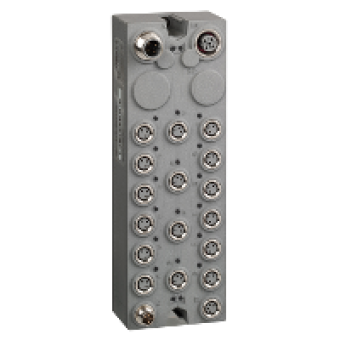

TM7BDM16B - expansion block - TM7 - IP67 - 16 DI/DO - 24V DC - 0.5 A - M8 connector, Schneider Electric
- Product Code: TM7BDM16B
- Brand: Schneider Electric
- Availability: To be confirmed
- € 277.17 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM7
product or component type
DISCRETE I O EXPANSION BLOCK
range compatibility
MODICON LMC058
enclosure material
PLASTIC
bus type
TM7 BUS
[Ue] rated operational voltage
24 V DC
input/output number
16
input/output number of block
16 I O
COMPLEMETARY CHARACTERISTICS
discrete input number
0...16 INPUTS CONFIGURABLE BY SOFTWARE
discrete input voltage
24 V
discrete input voltage type
DC
discrete input current
4.4 MA
discrete input logic
POSITIVE
discrete output number
0...16 OUTPUTS AT <= 0.5 A CONFIGURABLE BY SOFTWARE WITH TRANSISTOR PROTECTION
discrete output voltage
24 V
discrete output voltage type
DC
sensor power supply
24 V 500 MA FOR ALL CHANNELS WITH OVERLOAD SHORT-CIRCUIT AND REVERSE POLARITY PROTECTION
electrical connection
1 MALE CONNECTOR M12 - B CODING - 4 WAYS FOR BUS IN
local signalling
2 LEDS FOR BUS DIAGNOSTIC
operating position
ANY POSITION
fixing mode
BY 2 SCREWS
product weight
0.32 KG
