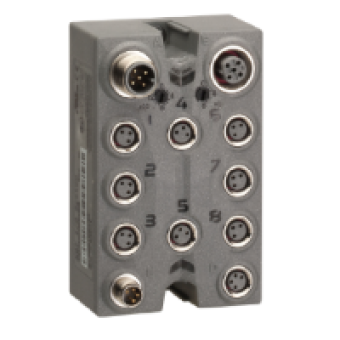

TM7NCOM08B - CANopen interface block - IP67 - 8 I/O - M8, Schneider Electric
- Product Code: TM7NCOM08B
- Brand: Schneider Electric
- Availability: To be confirmed
- € 292.15 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM7
product or component type
CANOPEN INTERFACE I O BLOCK
range compatibility
MODICON LMC058
enclosure material
PLASTIC
bus type
CANOPEN
[Ue] rated operational voltage
24 V DC
input/output number
8
input/output number of block
8 I O
COMPLEMETARY CHARACTERISTICS
discrete input number
0...8 INPUTS CONFIGURABLE BY SOFTWARE
discrete input voltage
24 V
discrete input voltage type
DC
discrete input current
4.4 MA
discrete input logic
POSITIVE
discrete output number
0...8 OUTPUTS CONFIGURABLE BY SOFTWARE
discrete output voltage
24 V
discrete output voltage type
DC
discrete output current
<= 0.5 A
discrete output type
TRANSISTOR
sensor power supply
24 V 500 MA FOR ALL CHANNELS WITH OVERLOAD SHORT-CIRCUIT AND REVERSE POLARITY PROTECTION
electrical connection
1 MALE CONNECTOR M12 - A CODING - 5 WAYS FOR CANOPEN BUS IN
local signalling
2 LEDS FOR BUS DIAGNOSTIC
operating position
ANY POSITION
fixing mode
BY 2 SCREWS
product weight
0.195 KG
