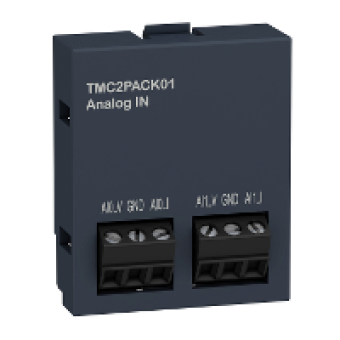

TMC2PACK01 - cartridge M221 - packaging 2 analog inputs - I/O extension, Schneider Electric
- Product Code: TMC2PACK01
- Brand: Schneider Electric
- Availability: To be confirmed
- € 64.04 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON M221
product or component type
ANALOGUE INPUT CARTRIDGE
product specific application
PACKAGING
product compatibility
MODICON M221C
analogue input number
2
COMPLEMETARY CHARACTERISTICS
analogue input type
current, input range: 4...20 mA
analogue input resolution
12 BITS
LSB value
2.44 mV (voltage), input range: 0...10 V
conversion time
20 MS
sampling duration
10 ms
absolute accuracy error
+ - 0.1 OF FULL SCALE 25 C
temperature drift
+ - 0.02 PT FS D C
repeat accuracy
+/- 0.5 %FS
non-linearity
+/- 0.01 %FS
cross talk
<= 1 LSB
type of cable
TWISTED SHIELDED PAIRS CABLE
electrical connection
2 screw terminal blocks (pitch 3.81 mm) 1.5 mm² 3 for inputs
max cable distance between devices
TWISTED SHIELDED PAIRS CABLE 30 M FOR INPUT
insulation
non-insulated between analogue input and internal logic
height
41 MM
depth
15 MM
width
35 MM
product weight
0.015 KG
permissible continuous overload
13 V (voltage)
input impedance
<= 250 OHM CURRENT
