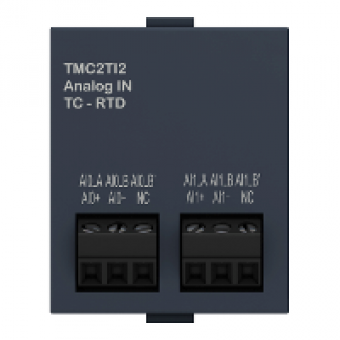

TMC2TI2 - cartridge M221 - 2 temperature inputs - I/O extension, Schneider Electric
- Product Code: TMC2TI2
- Brand: Schneider Electric
- Availability: To be confirmed
- € 56.74 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON M221
product or component type
ANALOGUE INPUT CARTRIDGE
product compatibility
MODICON M221C
analogue input number
2
COMPLEMETARY CHARACTERISTICS
analogue input type
thermocouple, input range: - 200...1000 °C for thermocouple J
analogue input resolution
14 bits
LSB value
0.1 °C
sampling duration
125 ms (thermocouple)
absolute accuracy error
+ - 0.1 OF FULL SCALE PT 100 PT 1000 NI 100 NI 1000 25 C
temperature drift
+ - 0.02 PT FS D C
repeat accuracy
+/- 0.5 %FS
non-linearity
+/- 0.01 %FS
cross talk
<= 1 LSB
type of cable
TWISTED SHIELDED PAIRS CABLE
electrical connection
2 screw terminal blocks (pitch 3.81 mm) 1.5 mm² 3 for inputs
max cable distance between devices
TWISTED SHIELDED PAIRS CABLE 30 M FOR INPUT
insulation
non-insulated between analogue input and internal logic
height
41 MM
depth
15 MM
width
35 MM
product weight
0.015 KG
input impedance
>= 1 MOHM
