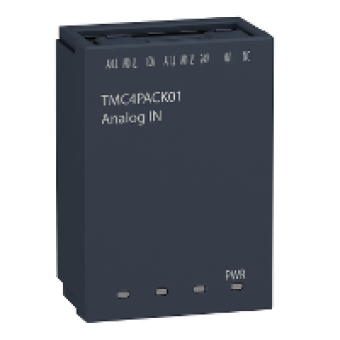

TMC4PACK01 - cartridge M241 - packaging 2 analog inputs, Schneider Electric
- Product Code: TMC4PACK01
- Brand: Schneider Electric
- Availability: To be confirmed
- € 102.07 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON M241
product or component type
ANALOGUE INPUT CARTRIDGE
product specific application
PACKAGING
product compatibility
MODICON M241C
analogue input number
2
COMPLEMETARY CHARACTERISTICS
analogue input type
current, input range: 4...20 mA
analogue input resolution
16 BITS
LSB value
1 mV (voltage), output range: 0...10 V
sampling duration
10 ms
absolute accuracy error
+ - 0.2 OF FULL SCALE 25 C
temperature drift
+ - 0.006 PT FS D C
repeat accuracy
+/- 0.2 %FS
non-linearity
+/- 0.05 %FS
cross talk
80 DB
type of cable
TWISTED SHIELDED PAIRS CABLE
electrical connection
1 spring terminal block (pitch 3.81 mm) 1.5 mm² 1 for inputs and supply
max cable distance between devices
TWISTED SHIELDED PAIRS CABLE 30 M FOR INPUT
insulation
between input and internal logic 500 V DC
supply voltage limits
20.4...28.8 V
local signalling
1 LED green PWR
height
50 MM
depth
21 MM
width
34 MM
product weight
0.055 KG
permissible continuous overload
40 mA (current)
input impedance
<= 250 OHM CURRENT
