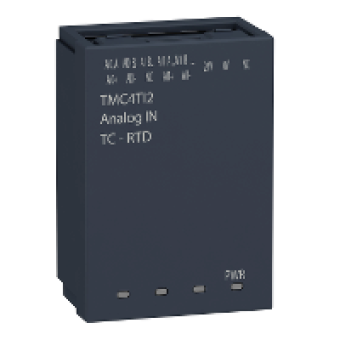

TMC4TI2 - cartridge M241 - 2 temperature inputs, Schneider Electric
- Product Code: TMC4TI2
- Brand: Schneider Electric
- Availability: To be confirmed
- € 99.36 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON M241
product or component type
ANALOGUE INPUT CARTRIDGE
product compatibility
MODICON M241C
analogue input number
2
COMPLEMETARY CHARACTERISTICS
analogue input type
thermocouple, input range: - 200...1000 °C for thermocouple J
analogue input resolution
14 bits
LSB value
0.1 °C
sampling duration
100 ms
absolute accuracy error
+ - 0.5 OF FULL SCALE PT 100 PT 1000 NI 100 NI 1000 25 C
temperature drift
+ - 0.008 PT FS D C
repeat accuracy
+/- 0.1 %FS
non-linearity
+/- 0.05 %FS
cross talk
80 DB
type of cable
TWISTED SHIELDED PAIRS CABLE
electrical connection
1 spring terminal block (pitch 3.81 mm) 1.5 mm² 1 for outputs and supply
max cable distance between devices
TWISTED SHIELDED PAIRS CABLE 30 M FOR INPUT
insulation
between input and internal logic 500 V DC
supply voltage limits
20.4...28.8 V
local signalling
1 LED green PWR
height
50 MM
depth
21 MM
width
34 MM
product weight
0.055 KG
permissible continuous overload
6 V
input impedance
>= 1 MOHM
