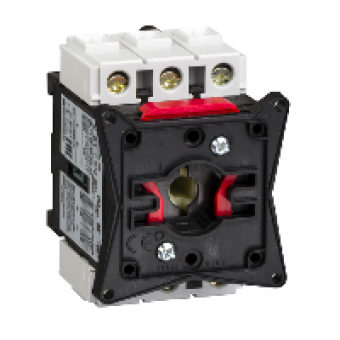

V02 - TeSys VARIO - Switch body for switch-disconnector - 3 poles - 12 A, Schneider Electric
- Product Code: V02
- Brand: Schneider Electric
- Availability: To be confirmed
- € 7.33 Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
product name
TESYS VARIO
device short name
V
product or component type
SWITCH BODY
performance level
HIGH PERFORMANCE
poles description
3P
contacts type and composition
3 NO
network type
AC
network frequency
50 60 HZ
suitability for isolation
YES
COMPLEMETARY CHARACTERISTICS
mounting support
PLATE
[Ue] rated operational voltage
690 V AC 5060 HZ
[Uimp] rated impulse withstand voltage
8 KV
[Ith] conventional free air thermal current
12 A
[Ithe] conventional enclosed thermal current
10 A
[Ie] rated operational current
8.1 A (AC-23) at 400 V
rated operational power in W
3 kW at 400...415 V (AC-3)
intermittent duty class
30
Making capacity ( I Rms)
120 A AT 400 V AC-21A
[Icm] rated short-circuit making capacity
1 KA AT 400 V AT IPEAK
[Icw] rated short-time withstand Rms current
300 A AT 400 V DURING 1 S
rated conditional short-circuit current
10 KA AT 400 V - ASSOCIATED FUSE 12 A AM
breaking capacity
120 A AT 400 V AC-21A
mechanical durability
100000 CYCLES
electrical durability
100000 cycles AC-21
connections - terminals
POWER CIRCUIT SCREW CLAMP TERMINALS CABLE 10 MM - CABLE STIFFNESS SOLID
tightening torque
power circuit : 2.1 N.m - on screw clamp terminals
height
74 MM
width
55 MM
depth
60 MM
product weight
0.2 KG
compatibility code
V
