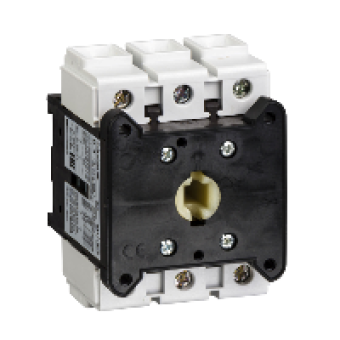

V3 - TeSys VARIO - Switch body for switch-disconnector - 3 poles - 63 A, Schneider Electric
- Product Code: V3
- Brand: Schneider Electric
- Availability: To be confirmed
- € 31.09 Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
product name
TESYS VARIO
device short name
V
product or component type
SWITCH BODY
performance level
HIGH PERFORMANCE
poles description
3P
contacts type and composition
3 NO
network type
AC
network frequency
50 60 HZ
suitability for isolation
YES
COMPLEMETARY CHARACTERISTICS
mounting support
PLATE
[Ue] rated operational voltage
690 V AC 5060 HZ
[Uimp] rated impulse withstand voltage
8 KV
[Ith] conventional free air thermal current
63 A
[Ithe] conventional enclosed thermal current
50 A
[Ie] rated operational current
41.5 A (AC-23) at 400 V
rated operational power in W
11 kW at 230...240 V (AC-3)
intermittent duty class
30
Making capacity ( I Rms)
630 A AT 400 V AC-21A
[Icm] rated short-circuit making capacity
2.1 KA AT 400 V AT IPEAK
[Icw] rated short-time withstand Rms current
756 A AT 400 V DURING 1 S
rated conditional short-circuit current
10 KA AT 400 V - ASSOCIATED FUSE 63 A AM
breaking capacity
500 A AT 400 V AC-21A
mechanical durability
30000 CYCLES
electrical durability
30000 cycles AC-21
connections - terminals
POWER CIRCUIT SCREW CLAMP TERMINALS CABLE 16 MM - CABLE STIFFNESS FLEXIBLE - WITH CABLE END
tightening torque
power circuit : 4 N.m - on screw clamp terminals
height
83 MM
width
60 MM
depth
65 MM
product weight
0.5 KG
compatibility code
V
