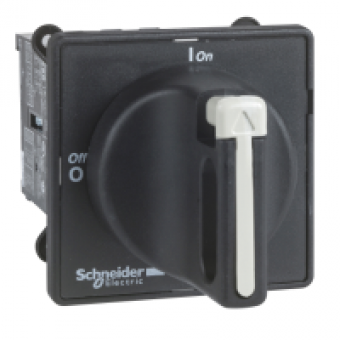

VBDN12 - TeSys Mini-Vario - switch disconnector - 12 A - on door, Schneider Electric

Product Code: VBDN12
Brand: Schneider Electric
Availability: To be confirmed

€ 10.60 Ex Tax:

Qty

Description

MAIN CHARACTERISTICS

range

TESYS

product name

TESYS MINI VARIO

device short name

VBDN

product or component type

SWITCH DISCONNECTOR

performance level

STANDARD

poles description

contacts type and composition

3 NO

network type

control type

ROTARY HANDLE

rotary handle mounting style

DIRECT

handle colour

BLACK

handle front plate colour

BLACK

rotary handle padlocking

1 to 3 padlocks 4...8 mm

COMPLEMETARY CHARACTERISTICS

marking

0 - 1

mounting support

HANDLE MOUNTING ON DOOR

fixing mode

hole with 22.5 mm for handle

[Ue] rated operational voltage

690 V AC 5060 HZ

[Uimp] rated impulse withstand voltage

6 KV

[Ith] conventional free air thermal current

12 A

[Ithe] conventional enclosed thermal current

10 A

[Ie] rated operational current

8.1 A (AC-23) at 400 V

rated operational power in W

3 kW 230...240 V (AC-23A)

intermittent duty class

Making capacity ( I Rms)

120 A 400 V (AC-21A)

[Icm] rated short-circuit making capacity

0.5 kA 400 V at Ipeak

[Icw] rated short-time withstand Rms current

140 A 400 V during 1 s

rated conditional short-circuit current

6 kA 400 V - associated fuse 12 A aM

breaking capacity

120 kA 400 V AC-21A

device composition

HANDLE

mechanical durability

50000 CYCLES

electrical durability

30000 cycles DC-1...5

suitability for isolation

YES

connections - terminals

power circuit : screw clamp terminals cable 4 mmÃ‚Â² - cable stiffness: flexible - with cable end cable end

tightening torque

power circuit : 0.7 N.m - on screw clamp terminals

handle front plate dimension

60 X 60 MM

height

60 MM

width

60 MM

product weight

0.177 KG

compatibility code

MAIN SWITCH DISCONNECTOR
