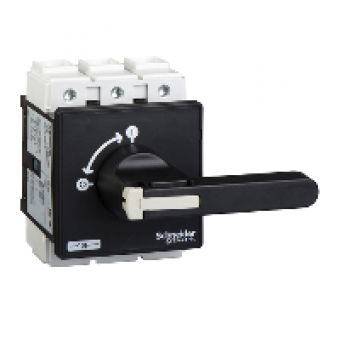

VBF6 - TeSys Vario - switch disconnector - 175 A - on door, Schneider Electric

Product Code: VBF6
Brand: Schneider Electric
Availability: To be confirmed

€ 134.70 Ex Tax:

Qty

Description

MAIN CHARACTERISTICS

range

TESYS

product name

TESYS VARIO

device short name

VBF

device application

PREVENTIVE MAINTENANCE

product or component type

MRGC STOP SWITCH DISCONNECTOR

performance level

HIGH PERFORMANCE

poles description

contacts type and composition

3 NO

network type

control type

ROTARY HANDLE

rotary handle mounting style

DIRECT

handle colour

BLACK

handle front plate colour

YELLOW

suitability for isolation

YES

COMPLEMETARY CHARACTERISTICS

rotary handle padlocking

1 to 3 padlocks 4...8 mm

marking

0 - 1

mounting support

HANDLE MOUNTING ON DOOR

fixing mode

by 4 screws for handle

[Ue] rated operational voltage

690 V AC 5060 HZ

[Uimp] rated impulse withstand voltage

8 KV

[Ith] conventional free air thermal current

175 A

[Ithe] conventional enclosed thermal current

140 A

[Ie] rated operational current

83 A (AC-23) at 400 V

rated operational power in W

30 kW at 230...240 V (AC-3)

intermittent duty class

Making capacity ( I Rms)

1750 A AT 400 V AC-21A

[Icm] rated short-circuit making capacity

2.8 KA AT 400 V AT IPEAK

[Icw] rated short-time withstand Rms current

2100 A AT 400 V DURING 1 S

rated conditional short-circuit current

10 KA AT 400 V - ASSOCIATED FUSE 200 A AM

breaking capacity

1400 A AT 400 V AC-21A

device composition

HANDLE

mechanical durability

30000 CYCLES

electrical durability

30000 cycles AC-21

connections - terminals

POWER CIRCUIT SCREW CLAMP TERMINALS CABLE 95 MM - CABLE STIFFNESS SOLID

tightening torque

power circuit : 22.6 N.m - on screw clamp terminals

handle front plate dimension

90 X 90 MM

height

125 MM

width

90 MM

product weight

1.2 KG

compatibility code

MAIN SWITCH DISCONNECTOR
