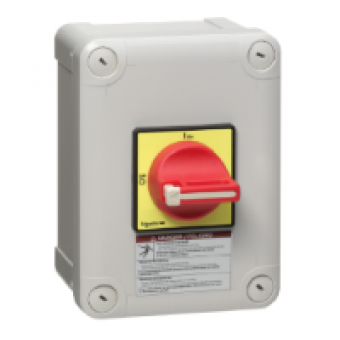

VC1GUN - TeSys VARIO - enclosed emergency stop switch disconnector - 140 A, Schneider Electric
- Product Code: VC1GUN
- Brand: Schneider Electric
- Availability: To be confirmed
- € 44.81 Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
product name
TESYS VARIO
device short name
VC GUN
product or component type
MRGC STOP SWITCH DISCONNECTOR
performance level
HIGH PERFORMANCE
poles description
3P
control type
ROTARY HANDLE
handle colour
RED
handle front plate colour
YELLOW
rotary handle padlocking
1 to 3 padlocks with 4...8 mm
COMPLEMETARY CHARACTERISTICS
marking
0 - 1
[Ue] rated operational voltage
690 V ACDC 5060 HZ
[Uimp] rated impulse withstand voltage
8 KV
[Ithe] conventional enclosed thermal current
25 A
[Ie] rated operational current
21.8 A AC-23A 400 V
rated operational power in W
11 KW AT 400 V AC-23
intermittent duty class
30
Making capacity ( I rms)
320 A at 400 V AC-21A
[Icm] rated short-circuit making capacity
1 KA AT 400 V AT IPEAK
[Ith] conventional free air thermal current
32 A IEC 600 V
rated power in hp
5 HP UL 240 V
[Icw] rated short-time withstand Rms current
384 A AT 400 V DURING 1 S
rated conditional short-circuit current
10 KA AT 400 V - ASSOCIATED FUSE 35 A AM
breaking capacity
250 A at 400 V (AC-21A)
mechanical durability
100000 CYCLES
electrical durability
100000 cycles AC-21
environmental characteristic
STANDARD
suitability for isolation
YES
connections - terminals
POWER CIRCUIT SCREW CLAMP TERMINALS CABLE 10 MM - CABLE STIFFNESS SOLID - WITH CABLE END CABLE END
tightening torque
power circuit : 2.1 N.m - on screw clamp terminals
fire resistance
960 C CONFORMING TO IEC 60595-2-1
handle front plate dimension
60 X 60 MM
height
74 MM
width
55 MM
depth
60 MM
product weight
0.2 KG
compatibility code
ENCLOSED SWITCH DISCONNECTOR
