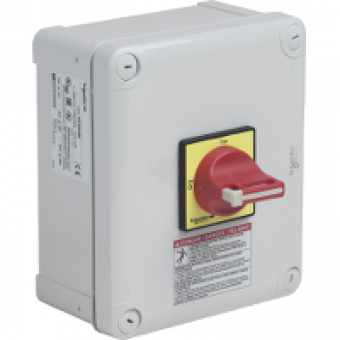

VC3GUN - TeSys VARIO - enclosed emergency stop switch disconnector - 140 A, Schneider Electric
- Product Code: VC3GUN
- Brand: Schneider Electric
- Availability: To be confirmed
- € 65.31 Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
product name
TESYS VARIO
device short name
VC GUN
product or component type
ENCLOSED SWITCH DISCONNECTOR
performance level
HIGH PERFORMANCE
poles description
3P
control type
ROTARY HANDLE
handle colour
RED
handle front plate colour
YELLOW
rotary handle padlocking
1 to 3 padlocks with 4...8 mm
COMPLEMETARY CHARACTERISTICS
marking
0 - 1
[Ue] rated operational voltage
690 V ACDC 5060 HZ
[Uimp] rated impulse withstand voltage
8 KV
[Ithe] conventional enclosed thermal current
63 A
[Ie] rated operational current
41.5 A AC-23A 400 V
rated operational power in W
22 KW AT 400 V AC-23
intermittent duty class
30
Making capacity ( I rms)
630 A at 400 V AC-21A
[Icm] rated short-circuit making capacity
2.1 KA AT 400 V AT IPEAK
[Ith] conventional free air thermal current
63 A IEC 600 V
rated power in hp
10 HP UL 240 V
[Icw] rated short-time withstand Rms current
756 A AT 400 V DURING 1 S
rated conditional short-circuit current
10 KA AT 400 V - ASSOCIATED FUSE 63 A AM
breaking capacity
500 A at 400 V (AC-21A)
mechanical durability
30000 CYCLES
electrical durability
30000 cycles AC-21
environmental characteristic
STANDARD
suitability for isolation
YES
connections - terminals
POWER CIRCUIT SCREW CLAMP TERMINALS CABLE 25 MM - CABLE STIFFNESS SOLID - WITH CABLE END CABLE END
tightening torque
power circuit : 4 N.m - on screw clamp terminals
fire resistance
960 C CONFORMING TO IEC 60595-2-1
handle front plate dimension
60 X 60 MM
height
83 MM
width
60 MM
depth
65 MM
product weight
0.5 KG
compatibility code
ENCLOSED SWITCH DISCONNECTOR
