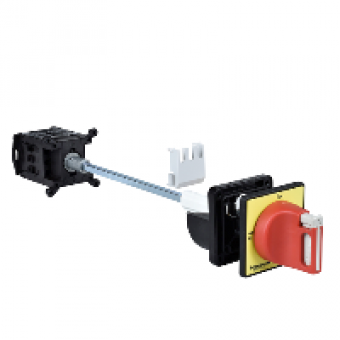

VCCDN12 - TeSys Mini-Vario - emergency stop switch disconnector - 12 A - back of enclosure, Schneider Electric

Product Code: VCCDN12
Brand: Schneider Electric
Availability: To be confirmed

€ 14.91 Ex Tax:

Qty

Description

MAIN CHARACTERISTICS

range

TESYS

product name

TESYS MINI VARIO

device short name

VCCDN

product or component type

MRGC STOP SWITCH DISCONNECTOR

performance level

STANDARD

poles description

contacts type and composition

3 NO

network type

control type

ROTARY HANDLE

rotary handle mounting style

EXTENDED

handle colour

RED

handle front plate colour

YELLOW

rotary handle padlocking

1 to 3 padlocks 4...8 mm

COMPLEMETARY CHARACTERISTICS

marking

0 - 1

mounting support

HANDLE MOUNTING ON DOOR

fixing mode

hole with 22.5 mm for handle

[Ue] rated operational voltage

690 V AC 5060 HZ

[Uimp] rated impulse withstand voltage

6 KV

[Ith] conventional free air thermal current

12 A

[Ithe] conventional enclosed thermal current

10 A

[Ie] rated operational current

8.1 A (AC-23) at 400 V

rated operational power in W

3 kW 230...240 V (AC-23A)

intermittent duty class

Making capacity ( I Rms)

120 A 400 V (AC-21A)

[Icm] rated short-circuit making capacity

0.5 kA 400 V at Ipeak

[Icw] rated short-time withstand Rms current

140 A 400 V during 1 s

rated conditional short-circuit current

6 kA 400 V - associated fuse 12 A aM

breaking capacity

120 kA 400 V AC-21A

device composition

HANDLE

mechanical durability

50000 CYCLES

electrical durability

30000 cycles DC-1...5

suitability for isolation

YES

connections - terminals

power circuit : screw clamp terminals cable 4 mmÃ‚Â² - cable stiffness: flexible - with cable end cable end

tightening torque

power circuit : 0.7 N.m - on screw clamp terminals

handle front plate dimension

60 X 60 MM

height

60 MM

width

60 MM

product weight

0.334 KG

compatibility code

MAIN SWITCH DISCONNECTOR
